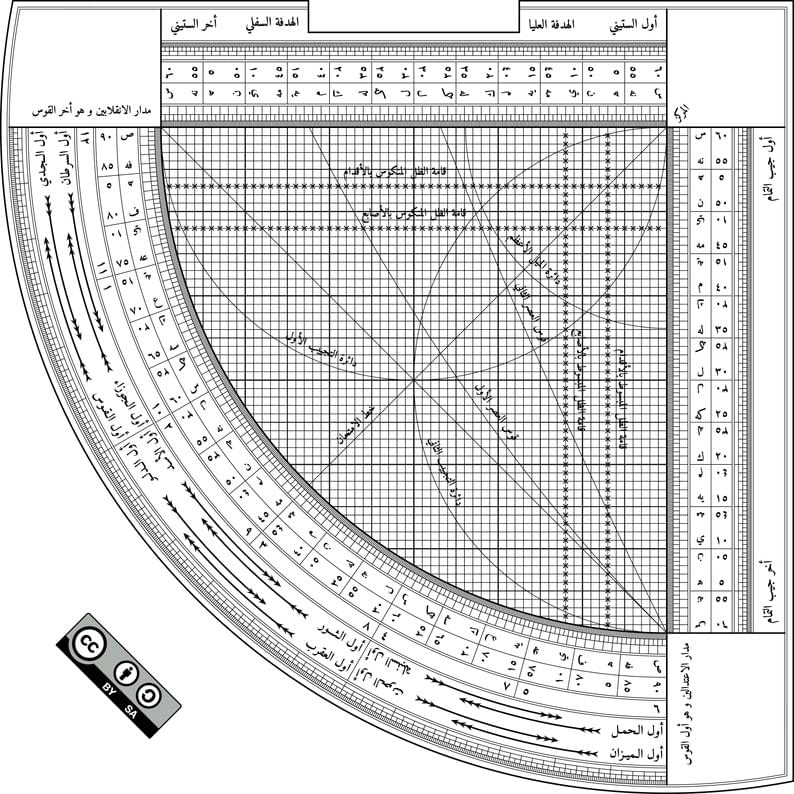

Sine Quadrant or Rubu‘ Mujayyab
Author:
M. S. Rosyidi
Last Updated:
4年前
License:
Other (as stated in the work)
Abstract:
Sine Quadrant or Rubu‘ Mujayyab
\begin
Discover why 18 million people worldwide trust Overleaf with their work.
\begin
Discover why 18 million people worldwide trust Overleaf with their work.
\documentclass[multi={tikzpicture},border=0pt,convert=imagemagick]{standalone}
\usepackage[no-math,quiet,silent]{fontspec}
\defaultfontfeatures[\rmfamily,\sffamily]{Ligatures=TeX}
\setmainfont[Numbers=Monospaced]{STIX Two Text}
\setsansfont[Scale=MatchUppercase]{Libertinus Sans}
\setmonofont[Scale=MatchLowercase,Numbers=SlashedZero]{Go Mono}
\newfontfamily\arabicfont[Script=Arabic,Mapping=arabicdigits,Scale=1.25]{Amiri}
\usepackage[dvipsnames,svgnames,x11names,hyperref]{xcolor}
\usepackage{fp}
\usepackage{tikz}
\usetikzlibrary{arrows.meta,fixedpointarithmetic,fpu}
\usepackage{hyperref,hyperxmp}
\usepackage[type={CC},modifier={by-sa},version={4.0}]{doclicense}
\usepackage[quiet]{polyglossia}
\setdefaultlanguage{bahasai}
\setotherlanguage{arabic}
\setotherlanguage{english}
%\tikzset{help lines/.style={blue!50,very thin}}
\begin{document}
\begin{tikzpicture}[line cap=round]
%\draw[help lines,step=5,red,thick] (-80,-80) grid (15,15);
\node[rotate=45] at (1.75,1.75) {\fontsize{31}{12}\selectfont\bfseries\RL{\textarabic{المركز}}};
% Al-Juyūb Al-Mabsūthah wa Al-Juyūb Al-Mankūsah
\foreach \xy in {0,1,...,60} {
\draw[line width=1.75pt,rotate=180]
(0:\xy) -- ([shift=(90:{sqrt((60^2)-(\xy^2))})]0:\xy);
\draw[line width=1.75pt,rotate=180]
(90:\xy) -- ([shift=(0:{sqrt((60^2)-(\xy^2))})]90:\xy);};
\foreach \xy in {0,5,...,60} {
\draw[line width=2.75pt,rotate=180]
(0:\xy) -- ([shift=(90:{sqrt((60^2)-(\xy^2))})]0:\xy);
\draw[line width=2.75pt,rotate=180]
(90:\xy) -- ([shift=(0:{sqrt((60^2)-(\xy^2))})]90:\xy);};
\foreach \xy in {0,10,...,60} {
\draw[line width=3.75pt,rotate=180]
(0:\xy) -- ([shift=(90:{sqrt((60^2)-(\xy^2))})]0:\xy);
\draw[line width=3.75pt,rotate=180]
(90:\xy) -- ([shift=(0:{sqrt((60^2)-(\xy^2))})]90:\xy);};
% Qāmah Azh-Zhill bi Al-Aqdām
\foreach \xyaq in {1,2,...,59} {
\draw[line width=2.75pt,rotate=180]
([shift={({\xyaq-0.25},{7-0.25})}]0,0) --
([shift={({\xyaq+0.25},{7+0.25})}]0,0)
([shift={({\xyaq-0.25},{7+0.25})}]0,0) --
([shift={({\xyaq+0.25},{7-0.25})}]0,0)
([shift={({7-0.25},{\xyaq-0.25})}]0,0) --
([shift={({7+0.25},{\xyaq+0.25})}]0,0)
([shift={({7+0.25},{\xyaq-0.25})}]0,0) --
([shift={({7-0.25},{\xyaq+0.25})}]0,0);};
\path (0,-7) -- (-60,-7) node[pos=0.5375,sloped,above=15pt] {\fontsize{31}{12}\selectfont\bfseries\RL{\textarabic{قامة الظل المنكوس بالأقدام}}};
\path (-7,0) -- (-7,-60) node[pos=0.5375,sloped,above=15pt] {\fontsize{31}{12}\selectfont\bfseries\RL{\textarabic{قامة الظل المبسوط بالأقدام}}};
% Qāmah Azh-Zhill bi Al-Ashābi‘
\foreach \xyaq in {1,2,...,58} {
\draw[line width=2.75pt,rotate=180]
([shift={({\xyaq-0.25},{12-0.25})}]0,0) --
([shift={({\xyaq+0.25},{12+0.25})}]0,0)
([shift={({\xyaq-0.25},{12+0.25})}]0,0) --
([shift={({\xyaq+0.25},{12-0.25})}]0,0)
([shift={({12-0.25},{\xyaq-0.25})}]0,0) --
([shift={({12+0.25},{\xyaq+0.25})}]0,0)
([shift={({12+0.25},{\xyaq-0.25})}]0,0) --
([shift={({12-0.25},{\xyaq+0.25})}]0,0);};
\path (0,-12) -- (-60,-12) node[pos=0.5,sloped,above=15pt] {\fontsize{31}{12}\selectfont\bfseries\RL{\textarabic{قامة الظل المنكوس بالأصابع}}};
\path (-12,0) -- (-12,-60) node[pos=0.5,sloped,above=15pt] {\fontsize{31}{12}\selectfont\bfseries\RL{\textarabic{قامة الظل المبسوط بالأصابع}}};
% Dāirah Al-Mail Al-A‘zham
\draw[line width=1.75pt] (180:{23+52/60}) arc (180:270:{23+52/60})
node[pos=0.5,sloped,above=15pt] {\fontsize{31}{12}\selectfont\bfseries\RL{\textarabic{دائرة الميل الأعظم}}};
% Qaus At-Tajyībain
\draw[line width=1.75pt] (0:0) arc(360:180:30)
node[pos=0.625,sloped,above=15pt] {\fontsize{31}{12}\selectfont\bfseries\RL{\textarabic{دائرة التجييب الأول}}};
\draw[line width=1.75pt] (0:0) arc(90:270:30)
node[pos=0.625,sloped,above=15pt] {\fontsize{31}{12}\selectfont\bfseries\RL{\textarabic{دائرة التجييب الثاني}}};
% Khaththā Al-Imtiḥān
\draw[line width=1.75pt] (0:0) -- (225:60)
node[pos=0.85,sloped,above=15pt] {\fontsize{31}{12}\selectfont\bfseries\RL{\textarabic{خط الامتحان}}};
\draw[line width=1.75pt] (180:60) -- (270:60);
% Qaus Al-‘Ashr Al-Awwal
\draw[line width=1.75pt,domain=-0.000015:90.000015,samples=30,fixed point arithmetic]
plot[smooth] ({-(60*sin(atan(1/(tan(abs(90-\x))+1))))},
{-((60*sin(atan(1/(tan(abs(90-\x))+1))))/tan(\x))});
\path (0,-60) -- (-42.426407,0) node[pos=0.45,sloped,above=-65pt] {\fontsize{31}{12}\selectfont\bfseries\RL{\textarabic{قوس العصر الأول}}};
% Qaus Al-‘Ashr Ats-Tsānī
\draw[line width=1.75pt,domain=-0.000015:90.000015,samples=30,fixed point arithmetic]
plot[smooth] ({-(60*sin(atan(1/(tan(abs(90-\x))+2))))},
{-((60*sin(atan(1/(tan(abs(90-\x))+2))))/tan(\x))});
\path (0,-60) -- (-26.832816,0) node[pos=0.6275,sloped,above=-5pt] {\fontsize{31}{12}\selectfont\bfseries\RL{\textarabic{قوس العصر الثاني}}};
% Ajzā’ Qaus Al-Irtifā‘
\foreach \aQI [parse=true] in {0,10/60,...,90} {
\draw[line width=1.75pt] ({\aQI+180}:60.00) -- ({\aQI+180}:60.75);
\draw[line width=1.75pt] ({\aQI+180}:77.50) -- ({\aQI+180}:78.00);};
\foreach \aQI [parse=true] in {0,30/60,...,90} {
\draw[line width=1.75pt] ({\aQI+180}:60.75) -- ({\aQI+180}:61.50);
\draw[line width=1.75pt] ({\aQI+180}:77.00) -- ({\aQI+180}:77.50);};
\foreach \aQI [parse=true] in {0,1,...,90} {
\draw[line width=1.75pt] ({\aQI+180}:61.50) -- ({\aQI+180}:62.50);
\draw[line width=1.75pt] ({\aQI+180}:76.50) -- ({\aQI+180}:77.00);};
\foreach \aQI [parse=true] in {0,5,...,90} {
\draw[line width=1.75pt] ({\aQI+180}:62.75) -- ({\aQI+180}:67.75);
\draw[line width=1.75pt] ({\aQI+180}:76.00) -- ({\aQI+180}:76.50);};
Qaus Al-Irtifā‘
\draw[line width=5.0pt] (270:60.00) arc (270:180:60.00);
\draw[line width=1.75pt] (270:60.75) arc (270:180:60.75);
\draw[line width=1.75pt] (270:61.50) arc (270:180:61.50);
\draw[line width=1.75pt] (270:62.50) arc (270:180:62.50);
\draw[line width=1.75pt] (270:62.75) arc (270:180:62.75);
\draw[line width=1.75pt] (270:65.25) arc (270:180:65.25);
\draw[line width=1.75pt] (270:67.75) arc (270:180:67.75);
\draw[line width=1.75pt] (270:68.00) arc (270:180:68.00);
\draw[line width=1.75pt] (270:76.50) arc (270:180:76.50);
\draw[line width=1.75pt] (270:77.00) arc (270:180:77.00);
\draw[line width=1.75pt] (270:77.50) arc (270:180:77.50);
\draw[line width=1.75pt] (270:78.00) arc (270:180:78.00);
\draw[line width=1.75pt] (270:78.25) arc (270:180:78.25);
% ‘Adad wa Abjad Ajzā’ Qaus Al-Irtifā‘
\foreach \aQI in {5,10,...,85} {
\node[rotate={\aQI+180}] at ({\aQI+180+1.00}:{(62.75+65.25)/2})
{\fontsize{31}{12}\selectfont\bfseries\RL{\textarabic{\abjad{\aQI}}}};
\node[rotate={\aQI+180}] at ({\aQI+180+1.00}:{(65.25+67.75)/2})
{\fontsize{31}{12}\selectfont\bfseries\RL{\textarabic{\aQI}}};
\node[rotate={90-\aQI}] at ({270-\aQI-1.00}:{(62.75+65.25)/2})
{\fontsize{31}{12}\selectfont\bfseries\RL{\textarabic{\abjad{\aQI}}}};
\node[rotate={90-\aQI}] at ({270-\aQI-1.00}:{(65.25+67.75)/2})
{\fontsize{31}{12}\selectfont\bfseries\RL{\textarabic{\aQI}}};};
\node[rotate={90+180}] at ({90+180-1.00}:{(62.75+65.25)/2})
{\fontsize{31}{12}\selectfont\bfseries\RL{\textarabic{\abjad{90}}}};
\node[rotate={90+180}] at ({90+180-1.00}:{(65.25+67.75)/2})
{\fontsize{31}{12}\selectfont\bfseries\RL{\textarabic{90}}};
\node[rotate={90-90}] at ({270-90+1.00}:{(62.75+65.25)/2})
{\fontsize{31}{12}\selectfont\bfseries\RL{\textarabic{\abjad{90}}}};
\node[rotate={90-90}] at ({270-90+1.00}:{(65.25+67.75)/2})
{\fontsize{31}{12}\selectfont\bfseries\RL{\textarabic{90}}};
% Ajza’ Jaib At-Tamām
\foreach \aJT [parse=true] in {0,{10/60},...,60} {
\draw[line width=1.75pt] (00.00,{-\aJT}) -- (00.75,{-\aJT});
\draw[line width=1.75pt] (09.50,{-\aJT}) -- (10.00,{-\aJT});};
\foreach \aJT [parse=true] in {0,30/60,...,60} {
\draw[line width=1.75pt] (00.75,{-\aJT}) -- (01.50,{-\aJT});
\draw[line width=1.75pt] (09.00,{-\aJT}) -- (09.50,{-\aJT});};
\foreach \aJT [parse=true] in {0,1.00,...,60} {
\draw[line width=1.75pt] (01.50,{-\aJT}) -- (02.50,{-\aJT});
\draw[line width=1.75pt] (08.50,{-\aJT}) -- (09.00,{-\aJT});};
\foreach \aJT [parse=true] in {0,5.00,...,60} {
\draw[line width=1.75pt] (02.75,{-\aJT}) -- (07.75,{-\aJT});
\draw[line width=1.75pt] (08.00,{-\aJT}) -- (08.50,{-\aJT});};
% Jaib At-Tamām
\draw[line width=5.0pt] (00.00,00.00) -- (00.00,-60.00);
\draw[line width=1.75pt] (00.75,00.00) -- (00.75,-60.00);
\draw[line width=1.75pt] (01.50,00.00) -- (01.50,-60.00);
\draw[line width=1.75pt] (02.50,00.00) -- (02.50,-60.00);
\draw[line width=1.75pt] (02.75,00.00) -- (02.75,-60.00);
\draw[line width=1.75pt] (05.25,00.00) -- (05.25,-60.00);
\draw[line width=1.75pt] (07.75,00.00) -- (07.75,-60.00);
\draw[line width=1.75pt] (08.00,00.00) -- (08.00,-60.00);
\draw[line width=1.75pt] (08.50,00.00) -- (08.50,-60.00);
\draw[line width=1.75pt] (09.00,00.00) -- (09.00,-60.00);
\draw[line width=1.75pt] (09.50,00.00) -- (09.50,-60.00);
\draw[line width=1.75pt] (10.00,00.00) -- (10.00,-60.00);
\draw[line width=1.75pt] (10.25,00.00) -- (10.25,-60.00);
\draw[line width=1.75pt] (14.00,00.00) -- (14.00,-60.00);
\draw[line width=1.75pt] (14.25,00.00) -- (14.25,-60.00);
% ‘Adad wa Abjad Ajza’ Jaib At-Tamām
\foreach \aJT in {5,10,...,55} {
\node[rotate=180] at ({(02.75+05.25)/2},{-(\aJT+1.00)})
{\fontsize{31}{12}\selectfont\bfseries\RL{\textarabic{\abjad{\aJT}}}};
\node[rotate=180] at ({(05.25+07.75)/2},{-(\aJT+1.00)})
{\fontsize{31}{12}\selectfont\bfseries\RL{\textarabic{\aJT}}};
\node[rotate=0] at ({(02.75+05.25)/2},{-(60-\aJT-1.00)})
{\fontsize{31}{12}\selectfont\bfseries\RL{\textarabic{\abjad{\aJT}}}};
\node[rotate=0] at ({(05.25+07.75)/2},{-(60-\aJT-1.00)})
{\fontsize{31}{12}\selectfont\bfseries\RL{\textarabic{\aJT}}};};
\node[rotate=180] at ({(02.75+05.25)/2},{-(60-1.00)})
{\fontsize{31}{12}\selectfont\bfseries\RL{\textarabic{\abjad{60}}}};
\node[rotate=180] at ({(05.25+07.75)/2},{-(60-1.00)})
{\fontsize{31}{12}\selectfont\bfseries\RL{\textarabic{60}}};
\node[rotate=0] at ({(02.75+05.25)/2},{-(60-60+1.00)})
{\fontsize{31}{12}\selectfont\bfseries\RL{\textarabic{\abjad{60}}}};
\node[rotate=0] at ({(05.25+07.75)/2},{-(60-60+1.00)})
{\fontsize{31}{12}\selectfont\bfseries\RL{\textarabic{60}}};
\node[rotate={90},anchor=east] at ({(10.25+14.00)/2},{-(60-60+1.00)})
{\fontsize{35}{12}\selectfont\bfseries\RL{\textarabic{أول جيب التمام}}};
\node[rotate={90},anchor=west] at ({(10.25+14.00)/2},{-(60-1.00)})
{\fontsize{35}{12}\selectfont\bfseries\RL{\textarabic{أخر جيب التمام}}};
% Ajzā’ As-Sittīniy
\foreach \aJA [parse=true] in {0,{10/60},...,60} {
\draw[line width=1.75pt] ({-\aJA},00.00) -- ({-\aJA},00.75);
\draw[line width=1.75pt] ({-\aJA},09.50) -- ({-\aJA},10.00);};
\foreach \aJA [parse=true] in {0,30/60,...,60} {
\draw[line width=1.75pt] ({-\aJA},00.75) -- ({-\aJA},01.50);
\draw[line width=1.75pt] ({-\aJA},09.00) -- ({-\aJA},09.50);};
\foreach \aJA [parse=true] in {0,1.00,...,60} {
\draw[line width=1.75pt] ({-\aJA},01.50) -- ({-\aJA},02.50);
\draw[line width=1.75pt] ({-\aJA},08.50) -- ({-\aJA},09.00);};
\foreach \aJA [parse=true] in {0,5.00,...,60} {
\draw[line width=1.75pt] ({-\aJA},02.75) -- ({-\aJA},07.75);
\draw[line width=1.75pt] ({-\aJA},08.00) -- ({-\aJA},08.50);};
% As-Sittīniy / Jaib Al-A‘zham
\draw[line width=5.00pt] (00.00,00.00) -- (-60.00,00.00);
\draw[line width=1.75pt] (00.00,00.75) -- (-60.00,00.75);
\draw[line width=1.75pt] (00.00,01.50) -- (-60.00,01.50);
\draw[line width=1.75pt] (00.00,02.50) -- (-60.00,02.50);
\draw[line width=1.75pt] (00.00,02.75) -- (-60.00,02.75);
\draw[line width=1.75pt] (00.00,05.25) -- (-60.00,05.25);
\draw[line width=1.75pt] (00.00,07.75) -- (-60.00,07.75);
\draw[line width=1.75pt] (00.00,08.00) -- (-60.00,08.00);
\draw[line width=1.75pt] (00.00,08.50) -- (-60.00,08.50);
\draw[line width=1.75pt] (00.00,09.00) -- (-60.00,09.00);
\draw[line width=1.75pt] (00.00,09.50) -- (-60.00,09.50);
\draw[line width=1.75pt] (00.00,10.00) -- (-60.00,10.00);
\draw[line width=1.75pt] (00.00,10.25) -- (-60.00,10.25);
\draw[line width=1.75pt] (00.00,14.00) -- (-17.50,14.00)
(-42.50,14.00) -- (-60.00,14.00);
\draw[line width=1.75pt] (00.00,14.25) -- (-17.50,14.25)
(-42.50,14.25) -- (-60.00,14.25);
\draw[line width=1.75pt] (-17.50,14.25) -- (-17.50,11.25) --
(-42.50,11.25) -- (-42.50,14.25);
% ‘Adad wa Abjad Ajzā’ As-Sittīniy
\foreach \aJA in {5,10,...,55} {
\node[rotate=90] at ({-(\aJA+1.00)},{(02.75+05.25)/2})
{\fontsize{31}{12}\selectfont\bfseries\RL{\textarabic{\abjad{\aJA}}}};
\node[rotate=90] at ({-(\aJA+1.00)},{(05.25+07.75)/2})
{\fontsize{31}{12}\selectfont\bfseries\RL{\textarabic{\aJA}}};
\node[rotate=270] at ({-(60-\aJA-1.00)},{(02.75+05.25)/2})
{\fontsize{31}{12}\selectfont\bfseries\RL{\textarabic{\abjad{\aJA}}}};
\node[rotate=270] at ({-(60-\aJA-1.00)},{(05.25+07.75)/2})
{\fontsize{31}{12}\selectfont\bfseries\RL{\textarabic{\aJA}}};};
\node[rotate=90] at ({-(60-1.00)},{(02.75+05.25)/2})
{\fontsize{31}{12}\selectfont\bfseries\RL{\textarabic{\abjad{60}}}};
\node[rotate=90] at ({-(60-1.00)},{(05.25+07.75)/2})
{\fontsize{31}{12}\selectfont\bfseries\RL{\textarabic{60}}};
\node[rotate=270] at ({-(60-60+1.00)},{(02.75+05.25)/2})
{\fontsize{31}{12}\selectfont\bfseries\RL{\textarabic{\abjad{60}}}};
\node[rotate=270] at ({-(60-60+1.00)},{(05.25+07.75)/2})
{\fontsize{31}{12}\selectfont\bfseries\RL{\textarabic{60}}};
\node[rotate={0},anchor=east] at ({-(60-60+1.00)},{(10.25+14.00)/2})
{\fontsize{35}{12}\selectfont\bfseries\RL{\textarabic{أول الستيني}}};
\node[rotate={0},anchor=west] at ({-(60-1.00)},{(10.25+14.00)/2})
{\fontsize{35}{12}\selectfont\bfseries\RL{\textarabic{أخر الستيني}}};
\node[rotate={0},anchor=west] at ({-(60-42.5-1.00)},{(10.25+14.00)/2})
{\fontsize{35}{12}\selectfont\bfseries\RL{\textarabic{الهدفة العليا}}};
\node[rotate={0},anchor=east] at ({-(42.5+1.00)},{(10.25+14.00)/2})
{\fontsize{35}{12}\selectfont\bfseries\RL{\textarabic{الهدفة السفلي}}};
% Bait Al-Burūj
\foreach \aQI in {0,15,...,90} {
\draw[line width=1.75pt] ({\aQI+180}:68.00) -- ({\aQI+180}:70.00);};
\draw[line width=1.75pt] (270:70.00) arc (270:180:70.00);
\draw[line width=1.75pt] (270:70.25) arc (270:180:70.25);
\foreach \aQI in {1,2,...,5} {
\node[rotate={\aQI*15+270}] at ({\aQI*15+180+1.00}:{(68.00+70.00)/2})
{\fontsize{35}{12}\selectfont\bfseries\RL{\textarabic{\aQI}}};};
\node[rotate={6*15+270}] at ({6*15+180-1.00}:{(68.00+70.00)/2})
{\fontsize{35}{12}\selectfont\bfseries\RL{\textarabic{6}}};
\foreach \aQI in {7,8,...,11} {
\node[rotate={90-\aQI*15}] at ({360-\aQI*15-1.00}:{(68.00+70.00)/2})
{\fontsize{35}{12}\selectfont\bfseries\RL{\textarabic{\aQI}}};};
\node[rotate={90-12*15}] at ({360-12*15+1.00}:{(68.00+70.00)/2})
{\fontsize{35}{12}\selectfont\bfseries\RL{\textarabic{12}}};
% Ḥadd Bait Al-Burūj
\foreach \hBB in {0,30,...,90} {
\draw[line width=1.75pt] ({\hBB+180}:70.25) -- ({\hBB+180}:75.75);};
\node[rotate={360-0-2.5},anchor=east] at ({270-0-0.25}:{(70.25+73.00)/2})
{\fontsize{35}{12}\selectfont\bfseries\RL{\textarabic{أول الـحمـل}}};
\node[rotate={360-0-2.5},anchor=east] at ({270-0-0.25}:{(73.00+75.75)/2})
{\fontsize{35}{12}\selectfont\bfseries\RL{\textarabic{أول الـميـزان}}};
\node[rotate={360-30-2.5},anchor=east] at ({270-30-0.25}:{(70.25+73.00)/2})
{\fontsize{35}{12}\selectfont\bfseries\RL{\textarabic{أول الـثـــور}}};
\node[rotate={360-30-2.5},anchor=east] at ({270-30-0.25}:{(73.00+75.75)/2})
{\fontsize{35}{12}\selectfont\bfseries\RL{\textarabic{أول العقرب}}};
\node[rotate={360-60-2.5},anchor=east] at ({270-60-0.25}:{(70.25+73.00)/2})
{\fontsize{35}{12}\selectfont\bfseries\RL{\textarabic{أول الـجوزاء}}};
\node[rotate={360-60-2.5},anchor=east] at ({270-60-0.25}:{(73.00+75.75)/2})
{\fontsize{35}{12}\selectfont\bfseries\RL{\textarabic{أول الـقـوس}}};
\node[rotate={0+90+2.5},anchor=east] at ({0+180+0.25}:{(70.25+73.00)/2})
{\fontsize{35}{12}\selectfont\bfseries\RL{\textarabic{أول السرطان}}};
\node[rotate={0+90+2.5},anchor=east] at ({0+180+0.25}:{(73.00+75.75)/2})
{\fontsize{35}{12}\selectfont\bfseries\RL{\textarabic{أول الــجـدي}}};
\node[rotate={30+90+2.5},anchor=east] at ({30+180+0.25}:{(70.25+73.00)/2})
{\fontsize{35}{12}\selectfont\bfseries\RL{\textarabic{أول الأسـد}}};
\node[rotate={30+90+2.5},anchor=east] at ({30+180+0.25}:{(73.00+75.75)/2})
{\fontsize{35}{12}\selectfont\bfseries\RL{\textarabic{أول الــدلــو}}};
\node[rotate={60+90+2.5},anchor=east] at ({60+180+0.25}:{(70.25+73.00)/2})
{\fontsize{35}{12}\selectfont\bfseries\RL{\textarabic{أول السنبلة}}};
\node[rotate={60+90+2.5},anchor=east] at ({60+180+0.25}:{(73.00+75.75)/2})
{\fontsize{35}{12}\selectfont\bfseries\RL{\textarabic{أول الـحوت}}};
\foreach \hBB in {0,30,...,60} {
\draw[line width=5.0pt,{Stealth[reversed]Stealth[reversed]Stealth[reversed]}-{Stealth[]Stealth[]Stealth[]}]
({270-\hBB-6.25}:{70.25+(73.00-70.25)*2/3})
arc ({270-\hBB-6.25}:{270-\hBB-15-(15-10)}:{70.25+(73.00-70.25)*2/3});
\draw[line width=5.0pt,{Stealth[reversed]Stealth[reversed]Stealth[reversed]}-{Stealth[]Stealth[]Stealth[]}]
({\hBB+180+6.25}:{70.25+(73.00-70.25)*1/3})
arc ({\hBB+180+6.25}:{\hBB+180+15+(15-10)}:{70.25+(73.00-70.25)*1/3});
\draw[line width=5.0pt,{Stealth[reversed]Stealth[reversed]Stealth[reversed]}-{Stealth[]Stealth[]Stealth[]}]
({270-\hBB-6.25}:{73.00+(75.75-73.00)*2/3})
arc ({270-\hBB-6.25}:{270-\hBB-15-(15-10)}:{73.00+(75.75-73.00)*2/3});
\draw[line width=5.0pt,{Stealth[reversed]Stealth[reversed]Stealth[reversed]}-{Stealth[]Stealth[]Stealth[]}]
({\hBB+180+6.25}:{73.00+(75.75-73.00)*1/3})
arc ({\hBB+180+6.25}:{\hBB+180+15+(15-10)}:{73.00+(75.75-73.00)*1/3});};
\draw[line width=1.75pt] (270:75.75) arc (270:180:75.75);
\draw[line width=1.75pt] (270:76.00) arc (270:180:76.00);
\node[rotate={90},anchor=east] at ({(00.25+04.00)/2},{-(60.00+1.00)})
{\fontsize{31}{12}\selectfont\bfseries\RL{\textarabic{مدار الاعتدالين و هو أول القوس}}};
\node[rotate={0},anchor=east] at ({-(60.00+1.00)},{(00.25+04.00)/2})
{\fontsize{31}{12}\selectfont\bfseries\RL{\textarabic{مدار الانقلابين و هو أخر القوس}}};
\draw[line width=1.75pt] (180:78.00) arc (180:{180-asin(14.00/78.00)}:78.00) -- (-60,14.00);
\draw[line width=1.75pt] (180:78.25) arc (180:{180-asin(14.25/78.25)}:78.25) -- (-60,14.25);
\draw[line width=1.75pt] (270:78.00) arc (270:{270+asin(14.00/78.00)}:78.00) -- (14.00,-60);
\draw[line width=1.75pt] (270:78.25) arc (270:{270+asin(14.25/78.25)}:78.25) -- (14.25,-60);
\draw[line width=1.75pt] (00.00,14.00) -- (14.00,14.00) -- (14.00,00.00);
\draw[line width=1.75pt] (00.00,14.25) -- (14.25,14.25) -- (14.25,00.00);
\draw[line width=5.0pt] (00.00,00.00) -- (00.00,-78.00);
\draw[line width=5.0pt] (00.00,00.00) -- (-78.00,00.00);
\draw[line width=5.0pt] (00.00,00.00) -- (00.00,14.00);
\draw[line width=5.0pt] (-60.00,00.00) -- (-60.00,14.00);
\draw[line width=5.0pt] (00.00,00.00) -- (14.00,00.00);
\draw[line width=5.0pt] (00.00,-60.00) -- (14.00,-60.00);
\draw[line width=5.0pt] (270:79.00) arc (270:180:79.00);
\draw[line width=5.0pt] (15.00,00.00) -- (15.00,-60.00);
\draw[line width=5.0pt] (00.00,15.00) -- (-17.50,15.00) --
(-17.50,11.25) -- (-42.50,11.25) --
(-42.50,15.00) -- (-60.00,15.00);
\draw[line width=5.0pt] (180:79.00) arc (180:{180-asin(15.00/79.00)}:79.00) -- (-60,15.00);
\draw[line width=5.0pt] (270:79.00) arc (270:{270+asin(15.00/79.00)}:79.00) -- (15.00,-60);
\draw[line width=5.0pt] (00.00,15.00) -- (15.00,15.00) -- (15.00,00.00);
\node[rotate={270+45}] at (-65,-65) {\doclicenseImage[imagewidth=45em]};
\end{tikzpicture}
\begin{tikzpicture}[line cap=round]
% \draw[help lines,step=5,red,thick] (-80,-80) grid (15,15);
\node[rotate={270+45}] at (-1.75,1.75) {\fontsize{31}{12}\selectfont\bfseries\RL{\textarabic{المركز}}};
% Al-Juyūb Al-Mabsūthah wa Al-Juyūb Al-Mankūsah
\foreach \xy in {0,1,...,60} {
\draw[line width=1.75pt,rotate=270]
(0:\xy) -- ([shift=(90:{sqrt((60^2)-(\xy^2))})]0:\xy);
\draw[line width=1.75pt,rotate=270]
(90:\xy) -- ([shift=(0:{sqrt((60^2)-(\xy^2))})]90:\xy);};
\foreach \xy in {0,5,...,60} {
\draw[line width=2.75pt,rotate=270]
(0:\xy) -- ([shift=(90:{sqrt((60^2)-(\xy^2))})]0:\xy);
\draw[line width=2.75pt,rotate=270]
(90:\xy) -- ([shift=(0:{sqrt((60^2)-(\xy^2))})]90:\xy);};
\foreach \xy in {0,10,...,60} {
\draw[line width=3.75pt,rotate=270]
(0:\xy) -- ([shift=(90:{sqrt((60^2)-(\xy^2))})]0:\xy);
\draw[line width=3.75pt,rotate=270]
(90:\xy) -- ([shift=(0:{sqrt((60^2)-(\xy^2))})]90:\xy);};
% Qāmah Azh-Zhill bi Al-Aqdām
\foreach \xyaq in {1,2,...,59} {
\draw[line width=2.75pt,rotate=270]
([shift={({\xyaq-0.25},{7-0.25})}]0,0) --
([shift={({\xyaq+0.25},{7+0.25})}]0,0)
([shift={({\xyaq-0.25},{7+0.25})}]0,0) --
([shift={({\xyaq+0.25},{7-0.25})}]0,0)
([shift={({7-0.25},{\xyaq-0.25})}]0,0) --
([shift={({7+0.25},{\xyaq+0.25})}]0,0)
([shift={({7+0.25},{\xyaq-0.25})}]0,0) --
([shift={({7-0.25},{\xyaq+0.25})}]0,0);};
\path (0,-7) -- (60,-7) node[pos=0.5375,sloped,above=15pt] {\fontsize{31}{12}\selectfont\bfseries\RL{\textarabic{قامة الظل المنكوس بالأقدام}}};
\path (7,0) -- (7,-60) node[pos=0.5375,sloped,below=15pt] {\fontsize{31}{12}\selectfont\bfseries\RL{\textarabic{قامة الظل المبسوط بالأقدام}}};
% Qāmah Azh-Zhill bi Al-Ashābi‘
\foreach \xyaq in {1,2,...,58} {
\draw[line width=2.75pt,rotate=270]
([shift={({\xyaq-0.25},{12-0.25})}]0,0) --
([shift={({\xyaq+0.25},{12+0.25})}]0,0)
([shift={({\xyaq-0.25},{12+0.25})}]0,0) --
([shift={({\xyaq+0.25},{12-0.25})}]0,0)
([shift={({12-0.25},{\xyaq-0.25})}]0,0) --
([shift={({12+0.25},{\xyaq+0.25})}]0,0)
([shift={({12+0.25},{\xyaq-0.25})}]0,0) --
([shift={({12-0.25},{\xyaq+0.25})}]0,0);};
\path (0,-12) -- (60,-12) node[pos=0.5,sloped,above=15pt] {\fontsize{31}{12}\selectfont\bfseries\RL{\textarabic{قامة الظل المنكوس بالأصابع}}};
\path (12,0) -- (12,-60) node[pos=0.5,sloped,below=15pt] {\fontsize{31}{12}\selectfont\bfseries\RL{\textarabic{قامة الظل المبسوط بالأصابع}}};
% Dāirah Al-Mail Al-A‘zham
\draw[line width=1.75pt] (270:{23+52/60}) arc (270:360:{23+52/60})
node[pos=0.5,sloped,above=15pt] {\fontsize{31}{12}\selectfont\bfseries\RL{\textarabic{دائرة الميل الأعظم}}};
% Qaus At-Tajyībain
\draw[line width=1.75pt] (0:0) arc(180:360:30)
node[pos=0.625,sloped,above=15pt] {\fontsize{31}{12}\selectfont\bfseries\RL{\textarabic{دائرة التجييب الأول}}};
\draw[line width=1.75pt] (-30:0) arc(270:90:-30)
node[pos=0.625,sloped,above=15pt] {\fontsize{31}{12}\selectfont\bfseries\RL{\textarabic{دائرة التجييب الثاني}}};
% Khaththā Al-Imtiḥān
\draw[line width=1.75pt] (0:0) -- ({270+45}:60)
node[pos=0.85,sloped,above=15pt] {\fontsize{31}{12}\selectfont\bfseries\RL{\textarabic{خط الامتحان}}};
\draw[line width=1.75pt] (360:60) -- (270:60);
% Qaus Al-‘Ashr Al-Awwal
\draw[line width=1.75pt,domain=-0.000015:90.000015,samples=30,fixed point arithmetic]
plot[smooth] ({+(60*sin(atan(1/(tan(abs(90-\x))+1))))},
{-((60*sin(atan(1/(tan(abs(90-\x))+1))))/tan(\x))});
\path (0,-60) -- (42.426407,0) node[pos=0.45,sloped,above=-65pt] {\fontsize{31}{12}\selectfont\bfseries\RL{\textarabic{قوس العصر الأول}}};
% Qaus Al-‘Ashr Ats-Tsānī
\draw[line width=1.75pt,domain=-0.000015:90.000015,samples=30,fixed point arithmetic]
plot[smooth] ({+(60*sin(atan(1/(tan(abs(90-\x))+2))))},
{-((60*sin(atan(1/(tan(abs(90-\x))+2))))/tan(\x))});
\path (0,-60) -- (26.832816,0) node[pos=0.6275,sloped,above=-5pt] {\fontsize{31}{12}\selectfont\bfseries\RL{\textarabic{قوس العصر الثاني}}};
% Ajzā’ Qaus Al-Irtifā‘
\foreach \aQI [parse=true] in {0,{10/60},...,90} {
\draw[line width=1.75pt] ({\aQI+270}:60.00) -- ({\aQI+270}:60.75);
\draw[line width=1.75pt] ({\aQI+270}:77.50) -- ({\aQI+270}:78.00);};
\foreach \aQI [parse=true] in {0,30/60,...,90} {
\draw[line width=1.75pt] ({\aQI+270}:60.75) -- ({\aQI+270}:61.50);
\draw[line width=1.75pt] ({\aQI+270}:77.00) -- ({\aQI+270}:77.50);};
\foreach \aQI [parse=true] in {0,1,...,90} {
\draw[line width=1.75pt] ({\aQI+270}:61.50) -- ({\aQI+270}:62.50);
\draw[line width=1.75pt] ({\aQI+270}:76.50) -- ({\aQI+270}:77.00);};
\foreach \aQI [parse=true] in {0,5,...,90} {
\draw[line width=1.75pt] ({\aQI+270}:62.75) -- ({\aQI+270}:67.75);
\draw[line width=1.75pt] ({\aQI+270}:76.00) -- ({\aQI+270}:76.50);};
% Qaus Al-Irtifā‘
\draw[line width=5.00pt] (270:60.00) arc (270:360:60.00);
\draw[line width=1.75pt] (270:60.75) arc (270:360:60.75);
\draw[line width=1.75pt] (270:61.50) arc (270:360:61.50);
\draw[line width=1.75pt] (270:62.50) arc (270:360:62.50);
\draw[line width=1.75pt] (270:62.75) arc (270:360:62.75);
\draw[line width=1.75pt] (270:65.25) arc (270:360:65.25);
\draw[line width=1.75pt] (270:67.75) arc (270:360:67.75);
\draw[line width=1.75pt] (270:68.00) arc (270:360:68.00);
\draw[line width=1.75pt] (270:76.50) arc (270:360:76.50);
\draw[line width=1.75pt] (270:77.00) arc (270:360:77.00);
\draw[line width=1.75pt] (270:77.50) arc (270:360:77.50);
\draw[line width=1.75pt] (270:78.00) arc (270:360:78.00);
\draw[line width=1.75pt] (270:78.25) arc (270:360:78.25);
% ‘Adad wa Abjad Ajzā’ Qaus Al-Irtifā‘
\foreach \aQI in {5,10,...,85} {
\node[rotate={\aQI+270}] at ({\aQI+270+1.00}:{(62.75+65.25)/2})
{\fontsize{31}{12}\selectfont\bfseries\RL{\textarabic{\abjad{\aQI}}}};
\node[rotate={\aQI+270}] at ({\aQI+270+1.00}:{(65.25+67.75)/2})
{\fontsize{31}{12}\selectfont\bfseries\RL{\textarabic{\aQI}}};
\node[rotate={180-\aQI}] at ({360-\aQI-1.00}:{(62.75+65.25)/2})
{\fontsize{31}{12}\selectfont\bfseries\RL{\textarabic{\abjad{\aQI}}}};
\node[rotate={180-\aQI}] at ({360-\aQI-1.00}:{(65.25+67.75)/2})
{\fontsize{31}{12}\selectfont\bfseries\RL{\textarabic{\aQI}}};};
\node[rotate={90+270}] at ({90+270-1.00}:{(62.75+65.25)/2})
{\fontsize{31}{12}\selectfont\bfseries\RL{\textarabic{\abjad{90}}}};
\node[rotate={90+270}] at ({90+270-1.00}:{(65.25+67.75)/2})
{\fontsize{31}{12}\selectfont\bfseries\RL{\textarabic{90}}};
\node[rotate={180-90}] at ({360-90+1.00}:{(62.75+65.25)/2})
{\fontsize{31}{12}\selectfont\bfseries\RL{\textarabic{\abjad{90}}}};
\node[rotate={180-90}] at ({360-90+1.00}:{(65.25+67.75)/2})
{\fontsize{31}{12}\selectfont\bfseries\RL{\textarabic{90}}};
% Ajza’ Jaib At-Tamām
\foreach \aJT [parse=true] in {0,{10/60},...,60} {
\draw[line width=1.75pt] (-00.00,{-\aJT}) -- (-00.75,{-\aJT});
\draw[line width=1.75pt] (-09.50,{-\aJT}) -- (-10.00,{-\aJT});};
\foreach \aJT [parse=true] in {0,30/60,...,60} {
\draw[line width=1.75pt] (-00.75,{-\aJT}) -- (-01.50,{-\aJT});
\draw[line width=1.75pt] (-09.00,{-\aJT}) -- (-09.50,{-\aJT});};
\foreach \aJT [parse=true] in {0,1.00,...,60} {
\draw[line width=1.75pt] (-01.50,{-\aJT}) -- (-02.50,{-\aJT});
\draw[line width=1.75pt] (-08.50,{-\aJT}) -- (-09.00,{-\aJT});};
\foreach \aJT [parse=true] in {0,5.00,...,60} {
\draw[line width=1.75pt] (-02.75,{-\aJT}) -- (-07.75,{-\aJT});
\draw[line width=1.75pt] (-08.00,{-\aJT}) -- (-08.50,{-\aJT});};
% Jaib At-Tamām
\draw[line width=5.00pt] (-00.00,00.00) -- (-00.00,-60.00);
\draw[line width=1.75pt] (-00.75,00.00) -- (-00.75,-60.00);
\draw[line width=1.75pt] (-01.50,00.00) -- (-01.50,-60.00);
\draw[line width=1.75pt] (-02.50,00.00) -- (-02.50,-60.00);
\draw[line width=1.75pt] (-02.75,00.00) -- (-02.75,-60.00);
\draw[line width=1.75pt] (-05.25,00.00) -- (-05.25,-60.00);
\draw[line width=1.75pt] (-07.75,00.00) -- (-07.75,-60.00);
\draw[line width=1.75pt] (-08.00,00.00) -- (-08.00,-60.00);
\draw[line width=1.75pt] (-08.50,00.00) -- (-08.50,-60.00);
\draw[line width=1.75pt] (-09.00,00.00) -- (-09.00,-60.00);
\draw[line width=1.75pt] (-09.50,00.00) -- (-09.50,-60.00);
\draw[line width=1.75pt] (-10.00,00.00) -- (-10.00,-60.00);
\draw[line width=1.75pt] (-10.25,00.00) -- (-10.25,-60.00);
\draw[line width=1.75pt] (-14.00,00.00) -- (-14.00,-60.00);
\draw[line width=1.75pt] (-14.25,00.00) -- (-14.25,-60.00);
% ‘Adad wa Abjad Ajza’ Jaib At-Tamām
\foreach \aJT in {5,10,...,55} {
\node[rotate=180] at (-{(02.75+05.25)/2},{-(\aJT+1.00)})
{\fontsize{31}{12}\selectfont\bfseries\RL{\textarabic{\abjad{\aJT}}}};
\node[rotate=180] at (-{(05.25+07.75)/2},{-(\aJT+1.00)})
{\fontsize{31}{12}\selectfont\bfseries\RL{\textarabic{\aJT}}};
\node[rotate=0] at (-{(02.75+05.25)/2},{-(60-\aJT-1.00)})
{\fontsize{31}{12}\selectfont\bfseries\RL{\textarabic{\abjad{\aJT}}}};
\node[rotate=0] at (-{(05.25+07.75)/2},{-(60-\aJT-1.00)})
{\fontsize{31}{12}\selectfont\bfseries\RL{\textarabic{\aJT}}};};
\node[rotate=180] at (-{(02.75+05.25)/2},{-(60-1.00)})
{\fontsize{31}{12}\selectfont\bfseries\RL{\textarabic{\abjad{60}}}};
\node[rotate=180] at (-{(05.25+07.75)/2},{-(60-1.00)})
{\fontsize{31}{12}\selectfont\bfseries\RL{\textarabic{60}}};
\node[rotate=0] at (-{(02.75+05.25)/2},{-(60-60+1.00)})
{\fontsize{31}{12}\selectfont\bfseries\RL{\textarabic{\abjad{60}}}};
\node[rotate=0] at (-{(05.25+07.75)/2},{-(60-60+1.00)})
{\fontsize{31}{12}\selectfont\bfseries\RL{\textarabic{60}}};
\node[rotate={90},anchor=east] at (-{(10.25+14.00)/2},{-(60-60+1.00)})
{\fontsize{35}{12}\selectfont\bfseries\RL{\textarabic{أول جيب التمام}}};
\node[rotate={90},anchor=west] at (-{(10.25+14.00)/2},{-(60-1.00)})
{\fontsize{35}{12}\selectfont\bfseries\RL{\textarabic{أخر جيب التمام}}};
% Ajzā’ As-Sittīniy
\foreach \aJA [parse=true] in {0,{10/60},...,60} {
\draw[line width=1.75pt] ({\aJA},00.00) -- ({\aJA},00.75);
\draw[line width=1.75pt] ({\aJA},09.50) -- ({\aJA},10.00);};
\foreach \aJA [parse=true] in {0,30/60,...,60} {
\draw[line width=1.75pt] ({\aJA},00.75) -- ({\aJA},01.50);
\draw[line width=1.75pt] ({\aJA},09.00) -- ({\aJA},09.50);};
\foreach \aJA [parse=true] in {0,1.00,...,60} {
\draw[line width=1.75pt] ({\aJA},01.50) -- ({\aJA},02.50);
\draw[line width=1.75pt] ({\aJA},08.50) -- ({\aJA},09.00);};
\foreach \aJA [parse=true] in {0,5.00,...,60} {
\draw[line width=1.75pt] ({\aJA},02.75) -- ({\aJA},07.75);
\draw[line width=1.75pt] ({\aJA},08.00) -- ({\aJA},08.50);};
% As-Sittīniy / Jaib Al-A‘zham
\draw[line width=5.00pt] (00.00,00.00) -- (60.00,00.00);
\draw[line width=1.75pt] (00.00,00.75) -- (60.00,00.75);
\draw[line width=1.75pt] (00.00,01.50) -- (60.00,01.50);
\draw[line width=1.75pt] (00.00,02.50) -- (60.00,02.50);
\draw[line width=1.75pt] (00.00,02.75) -- (60.00,02.75);
\draw[line width=1.75pt] (00.00,05.25) -- (60.00,05.25);
\draw[line width=1.75pt] (00.00,07.75) -- (60.00,07.75);
\draw[line width=1.75pt] (00.00,08.00) -- (60.00,08.00);
\draw[line width=1.75pt] (00.00,08.50) -- (60.00,08.50);
\draw[line width=1.75pt] (00.00,09.00) -- (60.00,09.00);
\draw[line width=1.75pt] (00.00,09.50) -- (60.00,09.50);
\draw[line width=1.75pt] (00.00,10.00) -- (60.00,10.00);
\draw[line width=1.75pt] (00.00,10.25) -- (60.00,10.25);
\draw[line width=1.75pt] (00.00,14.00) -- (17.50,14.00)
(42.50,14.00) -- (60.00,14.00);
\draw[line width=1.75pt] (00.00,14.25) -- (17.50,14.25)
(42.50,14.25) -- (60.00,14.25);
\draw[line width=1.75pt] (17.50,14.25) -- (17.50,11.25) --
(42.50,11.25) -- (42.50,14.25);
% ‘Adad wa Abjad Ajzā’ As-Sittīniy
\foreach \aJA in {5,10,...,55} {
\node[rotate=90] at ({(\aJA+1.00)},{(02.75+05.25)/2})
{\fontsize{31}{12}\selectfont\bfseries\RL{\textarabic{\abjad{\aJA}}}};
\node[rotate=90] at ({(\aJA+1.00)},{(05.25+07.75)/2})
{\fontsize{31}{12}\selectfont\bfseries\RL{\textarabic{\aJA}}};
\node[rotate=270] at ({(60-\aJA-1.00)},{(02.75+05.25)/2})
{\fontsize{31}{12}\selectfont\bfseries\RL{\textarabic{\abjad{\aJA}}}};
\node[rotate=270] at ({(60-\aJA-1.00)},{(05.25+07.75)/2})
{\fontsize{31}{12}\selectfont\bfseries\RL{\textarabic{\aJA}}};};
\node[rotate=90] at ({(60-1.00)},{(02.75+05.25)/2})
{\fontsize{31}{12}\selectfont\bfseries\RL{\textarabic{\abjad{60}}}};
\node[rotate=90] at ({(60-1.00)},{(05.25+07.75)/2})
{\fontsize{31}{12}\selectfont\bfseries\RL{\textarabic{60}}};
\node[rotate=270] at ({(60-60+1.00)},{(02.75+05.25)/2})
{\fontsize{31}{12}\selectfont\bfseries\RL{\textarabic{\abjad{60}}}};
\node[rotate=270] at ({(60-60+1.00)},{(05.25+07.75)/2})
{\fontsize{31}{12}\selectfont\bfseries\RL{\textarabic{60}}};
\node[rotate={0},anchor=west] at ({(60-60+1.00)},{(10.25+14.00)/2})
{\fontsize{35}{12}\selectfont\bfseries\RL{\textarabic{أول الستيني}}};
\node[rotate={0},anchor=east] at ({(60-1.00)},{(10.25+14.00)/2})
{\fontsize{35}{12}\selectfont\bfseries\RL{\textarabic{أخر الستيني}}};
\node[rotate={0},anchor=east] at ({(60-42.5-1.00)},{(10.25+14.00)/2})
{\fontsize{35}{12}\selectfont\bfseries\RL{\textarabic{الهدفة العليا}}};
\node[rotate={0},anchor=west] at ({(42.5+1.00)},{(10.25+14.00)/2})
{\fontsize{35}{12}\selectfont\bfseries\RL{\textarabic{الهدفة السفلي}}};
% Raqm Al-Burūj
\foreach \aQI in {0,15,...,90} {
\draw[line width=1.75pt] ({\aQI+270}:68.00) -- ({\aQI+270}:70.00);};
\draw[line width=1.75pt] (270:70.00) arc (270:360:70.00);
\draw[line width=1.75pt] (270:70.25) arc (270:360:70.25);
\foreach \aQI in {1,2,...,5} {
\node[rotate={90-\aQI*15}] at ({360-\aQI*15-1.00}:{(68.00+70.00)/2})
{\fontsize{35}{12}\selectfont\bfseries\RL{\textarabic{\aQI}}};};
\node[rotate={90-6*15}] at ({360-6*15+1.00}:{(68.00+70.00)/2})
{\fontsize{35}{12}\selectfont\bfseries\RL{\textarabic{6}}};
\foreach \aQI in {7,8,...,11} {
\node[rotate={\aQI*15+270}] at ({180+\aQI*15+1.00}:{(68.00+70.00)/2})
{\fontsize{35}{12}\selectfont\bfseries\RL{\textarabic{\aQI}}};};
\node[rotate={12*15+270}] at ({180+12*15-1.00}:{(68.00+70.00)/2})
{\fontsize{35}{12}\selectfont\bfseries\RL{\textarabic{12}}};
% Ḥadd Bait Al-Burūj wa
\foreach \hBB in {0,30,...,90} {
\draw[line width=1.75pt] ({\hBB+270}:70.25) -- ({\hBB+270}:75.75);};
\node[rotate={360+00+2.5},anchor=west] at ({270+00+0.25}:{(70.25+73.00)/2})
{\fontsize{35}{12}\selectfont\bfseries\RL{\textarabic{أول الـحمـل}}};
\node[rotate={360+00+2.5},anchor=west] at ({270+00+0.25}:{(73.00+75.75)/2})
{\fontsize{35}{12}\selectfont\bfseries\RL{\textarabic{أول الـميـزان}}};
\node[rotate={360+30+2.5},anchor=west] at ({270+30+0.25}:{(70.25+73.00)/2})
{\fontsize{35}{12}\selectfont\bfseries\RL{\textarabic{أول الـثـــور}}};
\node[rotate={360+30+2.5},anchor=west] at ({270+30+0.25}:{(73.00+75.75)/2})
{\fontsize{35}{12}\selectfont\bfseries\RL{\textarabic{أول العقرب}}};
\node[rotate={360+60+2.5},anchor=west] at ({270+60+0.25}:{(70.25+73.00)/2})
{\fontsize{35}{12}\selectfont\bfseries\RL{\textarabic{أول الـجوزاء}}};
\node[rotate={360+60+2.5},anchor=west] at ({270+60+0.25}:{(73.00+75.75)/2})
{\fontsize{35}{12}\selectfont\bfseries\RL{\textarabic{أول الـقـوس}}};
\node[rotate={270-00-2.5},anchor=west] at ({360-00-0.25}:{(70.25+73.00)/2})
{\fontsize{35}{12}\selectfont\bfseries\RL{\textarabic{أول السرطان}}};
\node[rotate={270-00-2.5},anchor=west] at ({360-00-0.25}:{(73.00+75.75)/2})
{\fontsize{35}{12}\selectfont\bfseries\RL{\textarabic{أول الــجـدي}}};
\node[rotate={270-30-2.5},anchor=west] at ({360-30-0.25}:{(70.25+73.00)/2})
{\fontsize{35}{12}\selectfont\bfseries\RL{\textarabic{أول الأسـد}}};
\node[rotate={270-30-2.5},anchor=west] at ({360-30-0.25}:{(73.00+75.75)/2})
{\fontsize{35}{12}\selectfont\bfseries\RL{\textarabic{أول الــدلــو}}};
\node[rotate={270-60-2.5},anchor=west] at ({360-60-0.25}:{(70.25+73.00)/2})
{\fontsize{35}{12}\selectfont\bfseries\RL{\textarabic{أول السنبلة}}};
\node[rotate={270-60-2.5},anchor=west] at ({360-60-0.25}:{(73.00+75.75)/2})
{\fontsize{35}{12}\selectfont\bfseries\RL{\textarabic{أول الـحوت}}};
\foreach \hBB in {0,30,...,60} {
\draw[line width=5.0pt,{Stealth[reversed]Stealth[reversed]Stealth[reversed]}-{Stealth[]Stealth[]Stealth[]}]
({270+\hBB+6.25}:{70.25+(73.00-70.25)*2/3})
arc ({270+\hBB+6.25}:{270+\hBB+15+(15-10)}:{70.25+(73.00-70.25)*2/3});
\draw[line width=5.0pt,{Stealth[reversed]Stealth[reversed]Stealth[reversed]}-{Stealth[]Stealth[]Stealth[]}]
({360-\hBB-6.25}:{70.25+(73.00-70.25)*1/3})
arc ({360-\hBB-6.25}:{360-\hBB-15-(15-10)}:{{70.25+(73.00-70.25)*1/3}});
\draw[line width=5.0pt,{Stealth[reversed]Stealth[reversed]Stealth[reversed]}-{Stealth[]Stealth[]Stealth[]}]
({270+\hBB+6.25}:{73.00+(75.75-73.00)*2/3})
arc ({270+\hBB+6.25}:{270+\hBB+15+(15-10)}:{{73.00+(75.75-73.00)*2/3}});
\draw[line width=5.0pt,{Stealth[reversed]Stealth[reversed]Stealth[reversed]}-{Stealth[]Stealth[]Stealth[]}]
({360-\hBB-6.25}:{73.00+(75.75-73.00)*1/3})
arc ({360-\hBB-6.25}:{360-\hBB-15-(15-10)}:{{73.00+(75.75-73.00)*1/3}});};
\draw[line width=1.75pt] (270:75.75) arc (270:360:75.75);
\draw[line width=1.75pt] (270:76.00) arc (270:360:76.00);
\node[rotate={90},anchor=east] at ({-(00.25+04.00)/2},{-(60.00+1.00)})
{\fontsize{31}{12}\selectfont\bfseries\RL{\textarabic{مدار الاعتدالين و هو أول القوس}}};
\node[rotate={0},anchor=west] at ({+(60.00+1.00)},{(00.25+04.00)/2})
{\fontsize{31}{12}\selectfont\bfseries\RL{\textarabic{مدار الانقلابين و هو أخر القوس}}};
\draw[line width=1.75pt] (000:78.00) arc (000:{000+asin(14.00/78.00)}:78.00) -- (60,14.00);
\draw[line width=1.75pt] (000:78.25) arc (000:{000+asin(14.25/78.25)}:78.25) -- (60,14.25);
\draw[line width=1.75pt] (270:78.00) arc (270:{270-asin(14.00/78.00)}:78.00) -- (-14.00,-60);
\draw[line width=1.75pt] (270:78.25) arc (270:{270-asin(14.25/78.25)}:78.25) -- (-14.25,-60);
\draw[line width=1.75pt] (00.00,14.00) -- (-14.00,14.00) -- (-14.00,00.00);
\draw[line width=1.75pt] (00.00,14.25) -- (-14.25,14.25) -- (-14.25,00.00);
\draw[line width=5.0pt] (00.00,00.00) -- (00.00,-78.00);
\draw[line width=5.0pt] (00.00,00.00) -- (78.00, 00.00);
\draw[line width=5.0pt] (00.00,00.00) -- (00.00,14.00);
\draw[line width=5.0pt] (60.00,00.00) -- (60.00,14.00);
\draw[line width=5.0pt] (00.00,00.00) -- (-14.00,00.00);
\draw[line width=5.0pt] (00.00,-60.00) -- (-14.00,-60.00);
\draw[line width=5.0pt] (270:79.00) arc (270:360:79.00);
\draw[line width=5.0pt] (-15.00,00.00) -- (-15.00,-60.00);
\draw[line width=5.0pt] (00.00,15.00) -- (17.50,15.00) --
(17.50,11.25) -- (42.50,11.25) --
(42.50,15.00) -- (60.00,15.00);
\draw[line width=5.0pt] (000:79.00) arc (000:{000+asin(15.00/79.00)}:79.00) -- (60,15.00);
\draw[line width=5.0pt] (270:79.00) arc (270:{270-asin(15.00/79.00)}:79.00) -- (-15.00,-60);
\draw[line width=5.0pt] (00.00,15.00) -- (-15.00,15.00) -- (-15.00,00.00);
\node[rotate={45}] at (+65,-65) {\doclicenseImage[imagewidth=45em]};
\end{tikzpicture}
\end{document}
%-----------------------------------------------------------------------
% Muhammad Sahlan Rosyidi ibn Muhammad Chaizuddin Nuh Syuhada’
% http://creativecommons.org/licenses/by-sa/4.0/
% ............., .. ................. .... . / .. ......... .... .
% Senin Pahing, 22 Rabī‘ Al-Ākhir 1422 H / 7 Desember 2020 M42
% ±21:30:00 PM (GMT + 07:00).
%-----------------------------------------------------------------------
