DGUT通用论文/报告/作业模板(非官方)
Author
Mai
Last Updated
6 days ago
License
LaTeX Project Public License 1.3c
Abstract
东莞理工学院通用论文/报告/作业模板(非官方)v3.4.3 Github仓库:https://github.com/Maaaii/DUGT-LaTex-Template

东莞理工学院通用论文/报告/作业模板(非官方)v3.4.3 Github仓库:https://github.com/Maaaii/DUGT-LaTex-Template
% Author: Mai
% License: LaTeX Project Public License v1.3c
% 完整编译: XeLaTex -> BibTex -> XeLaTex -> XeLaTex
%%%%%%%%%%%%%%%%%%%%%%%% 文档配置 %%%%%%%%%%%%%%%%%%%%%%%%
\documentclass[
report, % 文档类型
oneside, % 单双栏
UTF8, % 字符集
zihao=-4 % 全局字号
]{config}
% 封面图片定义
\def \titlePageImages{
\includegraphics[width=0.220\textwidth] {DGUT-logo.pdf}\\ % 东莞理工学院校徽
\includegraphics[width=0.475\textwidth] {DGUT-title-CN.pdf}\\ % 东莞理工学院中文校名
\includegraphics[width=0.475\textwidth] {DGUT-title-EN.pdf}\\ % 东莞理工学院英文校名
}
% 文档信息定义
\def \majorTitle {模板使用指南} % 大标题
\def \minorTitleCN {基于 \LaTeX{} 的论文/报告/作业模板(非官方)使用指南} % 中文标题
\def \minorTitleEN {\LaTeX{}-based Thesis/Report/Assignment Template (Not Official) User Guide} % 英文标题
\def \currentDate {\zhtoday} % 日期 \zhtoday获取当前中文日期
\def \classificationNumber {A0000} % 分类号
\def \UDC {AA000.0} % UDC
\def \confidentialLevel {公开} % 密级
\def \serialNumber {0000} % 编号
% 个人信息定义
\def \titlePageInfoBox{
% 参数:#1下划线长度 #2字号 #3标题 #4内容
\infobox{6.00cm}{0.65cm}{版~~~~本}{v3.4.3}\\
\infobox{6.00cm}{0.65cm}{学~~~~院}{ABCD}\\
\infobox{6.00cm}{0.65cm}{专~~~~业}{EFGH}\\
\infobox{6.00cm}{0.65cm}{班~~~~级}{IJKL}\\
\infobox{6.00cm}{0.65cm}{姓~~~~名}{Mai}\\
\infobox{6.00cm}{0.65cm}{学~~~~号}{201912345678}\\
% \infobox{5cm}{0.7cm}{指导教师}{Mentor}\\
}
%%%%%%%%%%%%%%%%%%%%%%%% 文档开始 %%%%%%%%%%%%%%%%%%%%%%%%
\begin{document}

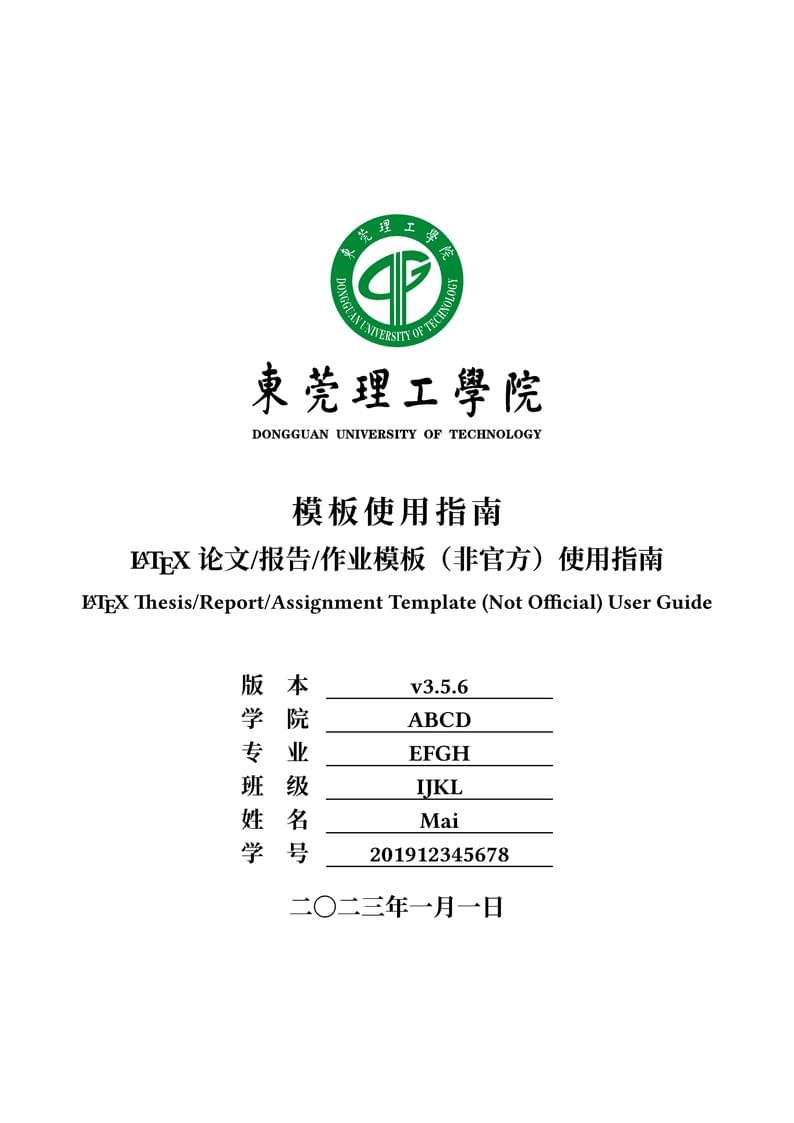

% 封面
\CoverPage
{right} % 封面类型:both、left、right、empty
{0.900cm} % 大标题字号
{0.725cm} % 中文标题字号
{0.700cm} % 英文标题字号
%%%%%%%%%%%%%%%%%%%%% 正文前页眉页脚 %%%%%%%%%%%%%%%%%%%%%%
% 页眉(关闭页眉务必将页眉类型设为empty)
\Header
{common} % 页眉类型:common、publish、empty
{1pt} % 上分隔线宽度
{1pt} % 两线距离
{0.5pt} % 下分割线宽度
{} % 页眉左自定义内容(文本或图片)
{\includegraphics[width=0.185\textwidth]{DGUT-title-CN.pdf}} % 页眉中自定义内容(文本或图片)
{} % 页眉右自定义内容(文本或图片)
%============================================%
% 页脚(关闭页脚务必将页脚类型设为empty)
\Footer
{common} % 页脚类型:common、publish、empty
{0pt} % 上分隔线宽度
{0pt} % 两线距离
{0pt} % 下分割线宽度
{} % 页脚左自定义内容(文本或图片)
{\thepage} % 页脚中自定义内容(文本或图片)
{} % 页脚右自定义内容(文本或图片)
%============================================%
% 页数样式 参数:#1起始页数
\SetRomanPageNumber{1} % 设置罗马数字页码
% \setArabicPageNumber{1} % 设置阿拉伯数字页码
%%%%%%%%%%%%%%%%%%%%%%%% 摘要 %%%%%%%%%%%%%%%%%%%%%%%
\begin{abstractCN}[0.65cm] % 中文摘要,参数:#1中文摘要标题字号
\LaTeX{}(发音为 “Lah-tech” 或 “Lay-tech” )是由 Leslie Lamport 开发的当今世界上最流行和使用最为广泛的 \TeX{} 宏集。它构筑在 PlainTeX 的基础之上,并加进了很多的功能以使得使用者可以更为方便的利用 \TeX{} 的强大功能。
使用 \LaTeX{} 基本上不需要使用者自己设计命令和宏等,因为 \LaTeX{} 已经替你做好了。因此,即使使用者并不是很了解 \TeX{},也可以在短短的时间内生成高质量的文档。对于生成复杂的数学公式,\LaTeX{} 表现的更为出色。
\LaTeX{} 由 \LaTeX{3} 项目维护,很多使用者对 \LaTeX{} 加入了很多补充扩展,例如为 \LaTeX{} 开发宏包和样式,其中的一些已经包含在很多 \LaTeX{} 软件中,可以在CTAN上获得更多的扩展宏包。
% 中文关键词
\def\keywordsCN{关键词1,关键词2,关键词3,关键词4,关键词5}
\end{abstractCN}
%============================================%
\begin{abstractEN}[0.7cm] % 英文摘要,参数:#1英文摘要标题字号
\LaTeX{} (pronounced either ``Lah-tech" or ``Lay-tech") is a set of macros for \TeX{} created by Leslie Lamport. Its purpose is to simplify \TeX{} typesetting, especially for documents containing mathematical formulae. Within the typesetting system, its name is formatted as ``\LaTeX{}".
\TeX{} is both a typographical and a logical markup language, and one has to take account of both issues when writing a \TeX{} document. On the other hand, Lamport's aim when creating \LaTeX{} was to split those two aspects. A typesetter can make a template and then the writers can just focus on \LaTeX{} logical markup. They might not know anything about typesetting.
In addition to the commands and options \LaTeX{} offers, many other authors have contributed extensions, called packages or styles, which you can use for your documents. Many of these are bundled with most \TeX{}/\LaTeX{} software distributions; more can be found in the Comprehensive \TeX{} Archive Network (CTAN).
% 英文关键词
\def\keywordsEN{keyword 1,keyword 2,keyword 3,keyword 4,keyword 5}
\end{abstractEN}
%%%%%%%%%%%%%%%%%%%%%%% 启用目录 %%%%%%%%%%%%%%%%%%%%%%%%
% 目录,参数:
% #1目录类型:next、current
% #2目录行距
% #3目录标题
% #4当前章节名
\contentPage{next}{1.5}{目~~~~录}{目录}
\contentpageOfFigures{next}{1.5}{图目录}{图目录}
\contentpageOfTables{next}{1.5}{表目录}{表目录}
%%%%%%%%%%%%%%%%%%%%%%% 启用水印 %%%%%%%%%%%%%%%%%%%%%%%%
\imageWatermark % 图片水印
{0} % 旋转角度
{0.8} % 放缩倍率
{0.02} % 透明度 0-1
{DGUT-logo.eps} % 图片路径
%%%%%%%%%%%%%%%%%%%%% 正文页眉页脚 %%%%%%%%%%%%%%%%%%%%%%%
% 页眉(关闭页眉务必将页眉类型设为empty)
\Header
{common} % 页眉类型:common、publish、empty
{1pt} % 上分隔线宽度
{1pt} % 两线距离
{0.5pt} % 下分割线宽度
{使用指南} % 页眉左自定义内容(文本或图片)
{} % 页眉中自定义内容(文本或图片)
{\currentChapterInfo} % 页眉右自定义内容(文本或图片)
%============================================%
% 页脚(关闭页脚务必将页脚类型设为empty)
\Footer
{common} % 页脚类型:common、publish、empty
{0pt} % 上分隔线宽度
{0pt} % 两线距离
{0pt} % 下分割线宽度
{} % 页脚左自定义内容(文本或图片)
{\thepage} % 页脚中自定义内容(文本或图片)
{} % 页脚右自定义内容(文本或图片)
%============================================%
% 页数样式 参数:#1起始页数
% \setRomanPageNumber{1} % 设置罗马数字页码
\SetArabicPageNumber{1} % 设置阿拉伯数字页码
%%%%%%%%%%%%%%%%%%%%%%% 正文 %%%%%%%%%%%%%%%%%%%%%%%%%%
\chapter{关于本模板}
\section{介绍}
\LaTeX{} 是一个强大的文档排版工具,但其相对较大的学习成本往往让初学者难以上手使用。为了让初学者能轻松使用 \LaTeX{},作者通过对一些成熟的方案进行整合、封装,创作出本模板。你可以在本模板的 Github 仓库\footnote{\url{https://github.com/Maaaii/DUGT-LaTex-Template}}中找到所有源码,同时也可以指出模板中的不足之处,作者将会尽力修改完善。
本使用指南演示了模板中的一些典型使用场景,其中包括:
\begin{itemize}
\item \textbf{排版相关:}封面页、页眉页脚、目录样式、标题样式、图表样式、脚注等。
\item \textbf{文本相关:}多级标题、列表。
\item \textbf{图表相关:}单个图片、多个图片。普通表格、复杂表格、跨页表格。
\item \textbf{引用相关:}多种样式的文献引用。
\item \textbf{数学相关:}数学符号、公式、定理证明。
\item \textbf{代码相关:}算法(伪代码)、代码块。
\end{itemize}
作者在开发本模板时大量参考、模仿、学习了许多优秀的第三方模板,参考的内容和参考模板的地址如表 \ref{tab:templates} 所示。
\begin{table}
\centering
\renewcommand{\arraystretch}{1.3} % 定义表格行距
\setlength{\tabcolsep}{3pt} % 定义列间宽度
\caption{参考模板相关信息}
\label{tab:templates}
\begin{threeparttable}[c]
\begin{tabular}{ccc}
\toprule[1.5pt]
\textbf{参考模板} & \textbf{参考内容} & \textbf{模板地址}\\
\midrule[0.8pt]
清华大学学位论文模板 & 示例文档、部分模板源码 & \href{https://github.com/tuna/thuthesis}{Github 地址}\\
华南师范大学本科毕业论文模板 & 部分模板源码 & \href{https://www.overleaf.com/latex/templates/scnu-my-article/jkbbvhnddtsw}{OverLeaf 地址}\\
上海师范大学研究生毕业论文模板 & 部分模板源码 & \href{https://www.overleaf.com/latex/templates/shnu-thesis/wsykzrksspgn}{OverLeaf 地址}\\
武汉大学博士论文模板 & 部分模板源码 & \href{https://www.overleaf.com/latex/templates/wu-yi-da-xue-bo-shi-lun-wen-latex-mo-ban/rcdzgvqgkddk}{OverLeaf 地址}\\
南开大学毕业论文模板 & 部分模板源码 & \href{https://github.com/Tr0py/NKU-thesis-template-2020}{Github 地址}\\
复旦大学博士学位论文模板 & 部分模板源码 & \href{https://cn.overleaf.com/latex/templates/fduthesis-latex-thesis-template-for-fudan-university/svtdhhstkmkt}{OverLeaf 地址}\\
\bottomrule[1.5pt]
\end{tabular}
\end{threeparttable}
\end{table}
\section{协议}
本模板采用 LPPL v1.3c\footnote{\url{https://www.latex-project.org/lppl/lppl-1-3c/}}或其之后的版本进行许可,请在遵循许可的前提下使用本模板。
\section{模板文件结构}
本模板的文件目录结构如表 \ref{tab:文件目录} 所示。
\begin{table}
\centering
\caption{模板文件目录结构}
\label{tab:文件目录}
% \renewcommand\arraystretch{1.2} % 定义表格行距
\setlength{\tabcolsep}{30pt} % 定义列间宽度
\begin{tabular}{ll}
\toprule[1.5pt]
\textbf{文件名} & \textbf{说明}\\
\midrule[0.8pt]
fonts & 字体文件夹\\
images & 图片文件夹\\
config.cls & 模板文件\\
\textbf{guide.tex} & \textbf{使用指南文本文件}\\
License & 软件许可证文件\\
\textbf{main.tex} & \textbf{空白文本文件}\\
references.bib & 参考文献表样式文件\\
\bottomrule[1.5pt]
\end{tabular}
\end{table}
其中,.cls 文件中定义了宏包、指令等,可以大致理解为模板的配置文件、源代码文件;.tex 文件用于编写主要的文本内容;.bib 文件是 \hologo{BibTeX} 所使用的文件,用于存放引用文献的相关信息。
\file{fonts} 文件夹用于存放模板中用到的字体。\file{images} 文件夹用于存放模板中用到的图片,\file{images/logos} 文件夹中存放的图片被用于封面页和水印。
\section{模板使用方式}
因本模板的所有编写都在 OverLeaf\footnote{OverLeaf 是一个强大的线上编辑 \LaTeX{} 文档工具,提供实时预览、线上存储、多人协作、版本管理、模板分享等功能。} 上完成,所以本文仅介绍模板在 OverLeaf 上的使用方法。
要在 OverLeaf 上使用本模板,只需要将模板的 rar 压缩文件上传至 OverLeaf 的个人项目库中打开即可。使用模板时,务必保证使用的编译器为 \hologo{XeLaTeX}。
熟悉本模板以及 \LaTeX{} 的基本操作后,建议将主文档文件切换为 \file{main.tex} 直接使用。
\chapter{文本相关}
本章节介绍使用 \LaTeX{} 完成简单的文本操作,其中包括分级标题、段落、列表(部分功能)的使用演示。文本内容选取自 \LaTeX{} 的维基教科书介绍\footnote{\url{https://en.wikibooks.org/wiki/LaTeX/Introduction}}。
\section{了解 \TeX{}}
\TeX{}(X 或 $\chi$)是由 Donald Knuth 创造的基于低级编程语言的电子排版系统,利用 \TeX{} 能够对文章进行十分精美的排版。\TeX{} 提供了一套功能强大并且十分灵活的排版语言,它多达 900 多条指令,支持 if-else 判断语句和运算(运算在文档编译的过程中执行)等功能,并且 \TeX{} 有宏功能,用户可以不断地定义自己适用的新命令来扩展 \TeX{} 系统的功能。许多人利用 \TeX{} 提供的宏定义功能对 \TeX{} 进行了二次开发,其中比较著名的有美国数学学会(AMS)推荐的非常适合于数学家使用的 \hologo{AmSLaTeX} 以及适合于一般文章、报告、书籍的 \LaTeX{} 系统。
\TeX{} 系统是公认的数学公式排得最好的系统。美国数学学会鼓励数学家们使用 \TeX{} 系统向它的期刊投稿。世界上许多一流的出版社如 Kluwer、Addison-Wesley、牛津大学出版社等也利用 \TeX{} 系统出版书籍和期刊。
\TeX{} 的强大之处在于其能够对文档的排版进行非常精细的操作,但也会造成难度的提高和耗时增加。1977 年,随着数字印刷的逐步发展,Donald Knuth 发现了数字印刷的潜力并开始 \TeX{} 排版引擎的编写工作,以改善日益恶化的印刷质量。我们现在用的 \TeX{} 排版系统发布于 1982 年,在 1989 年为了更好地支持多国语言又进行了一些改进。\TeX{} 具有很好的稳定性,能够在许多不同种类的计算机上运行,几乎不出现错误。
\TeX{} 一词来源于希腊语“τεχνολογία”(“technologìa”),意为“科技”;它的第一个音节“τεχ”与“TEX”相似,因此英文名取作“TEX”。\TeX{} 系统以逐渐收敛到 $\pi$ 的数字作为版本号。
\section{了解 \LaTeX{}}
\LaTeX{}(发音为“Lah-tech”或“Lay-tech”)是由 Leslie Lamport 开发的当今世界上最流行和使用最为广泛的 \TeX{} 宏集。它构筑在 PlainTeX 的基础之上,并加进了很多的功能以使得使用者可以更为方便的利用 \TeX{} 的强大功能。使用 \LaTeX{} 基本上不需要使用者自己设计命令和宏等,因为 \LaTeX{} 已经替你做好了。因此,即使使用者并不是很了解 \TeX{},也可以在短短的时间内生成高质量的文档。对于生成复杂的数学公式,\LaTeX{} 表现的更为出色。\LaTeX{} 由 \LaTeX{3} 项目维护,很多使用者对 \LaTeX{} 加入了很多补充扩展,例如为 \LaTeX{} 开发宏包和样式,其中的一些已经包含在很多 \LaTeX{} 软件中,可以在 CTAN 上获得更多的扩展宏包。
\subsection{\LaTeX{} 的缺点}
% 无序列表
\begin{itemize}
\item 一般来说是不能在输入文章的同时看到最终的输出效果,但是将文章用 \LaTeX{} 编译之后,是可以在屏幕上预览最终的输出效果的。尽管在预先定义好的版面中可以调节一些参数,设计全新的版面还是很困难的,需要耗费大量的时间。
\item 尽管在预先定义好的版面中可以调节一些参数,设计全新的版面还是很困难的,需要耗费大量的时间。
\item 需要掌握一些 \LaTeX{} 的排版命令。
\item \LaTeX{} 不适合于排版非结构化的、无序的文档。
\end{itemize}
\subsection{\LaTeX{} 的优点}
% 有序列表
\begin{enumerate}
\item 提供专业级的排版设计,使你的文档看起来如同印刷好的一样。
\item 可以更方便地排版数学公式。
\item 用户仅仅需要掌握少数容易理解的,用来说明文档逻辑结构的命令,而无需对实际的页面设计做胡乱的修补。
\item 可以很容易地生成脚注、索引、目录和参考文献等复杂的结构。
\item 有大量免费的可添加宏包,协助你完成许多基本的 \LaTeX{} 未直接支持的排版任务。例如,支持在文档中插入PostScript图形的宏包和排版符合各类标准的参考文献的宏包等。
\item \LaTeX{} 支持DVI和PDF格式的输出,如配合其他软件可以很容易地生成 PostScript、PNG、JPG 等格式的输出。
\item \TeX{} 作为 \LaTeX{} 的格式化引擎,是免费软件并且具有极高的可移植性,因此它几乎可以在任何硬件平台上运行。
\end{enumerate}
\chapter{图表相关}
\section{图片}
\subsection{单个图片}
图片通常在 figure 环境中使用 includegraphics 插入,如图 \ref{fig:example1} 的源代码。建议使用矢量图片(PDF)。照片建议使用 JPG 格式。其他的栅格图建议使用无损的 PNG 格式。
\begin{figure}[H] % 图片位置固定
\centering % 图片居中
\includegraphics[width=0.7\linewidth]{example-image} % 图片路径
\caption*{图片的说明文字。} % 图片说明文字
\caption{图片的标题} % 图片标题
\label{fig:example1} % 图片标签
\end{figure}
图片可以通过 width 参数来设置宽度,设置宽度后长度会等比例放缩。一般 width 参数会搭配 \cs{linewidth} 使用,以实现按照当前页面宽度进行等比例放缩。使用的效果如图 \ref{fig:example2} 所示。
\begin{figure}[H]
\centering
\includegraphics[width=0.5\linewidth]{example-image}
\caption{一张缩小到当前页宽的 0.5 倍的图片}
\label{fig:example2}
\end{figure}
\clearpage
使用 \pkg{tikz} 宏包可以直接画图,该宏包的学习成本和使用难度极高,不建议初学者使用。以下图片是 \pkg{tikz} 的一些使用案例。
\begin{figure}[H]
\centering
\input{images/Tikz/神经网络示意图}
\caption{神经网络示意图}
\label{fig:neural network example}
\end{figure}
\begin{figure}[H]
\centering
\input{images/Tikz/波的叠加示意图}
\caption{波的叠加示意图}
\label{fig:superposition of waves}
\end{figure}
\begin{figure}[H]
\centering
\resizebox{1\columnwidth}{!}{
\input{images/Tikz/时间线图}
}
\caption{时间线图}
\label{fig:timeline}
\end{figure}
\begin{figure}[H]
\centering
\input{images/Tikz/玻色爱因斯坦分布示意图}
\caption{玻色爱因斯坦分布示意图}
\label{fig:Bose Einstein distribution}
\end{figure}
\begin{figure}[H]
\centering
\resizebox{1\columnwidth}{!}{
\input{images/Tikz/注意力序列可视化图}
}
\caption{注意力序列可视化图}
\label{fig:text attention}
\end{figure}
\begin{figure}[H]
\centering
\input{images/Tikz/电磁波示意图}
\caption{电磁波示意图}
\label{fig:electromagnetic wave}
\end{figure}
\begin{figure}[H]
\centering
\input{images/Tikz/散点图}
\caption{散点图}
\label{fig:scatter diagram}
\end{figure}
\subsection{多个图片}
本模板使用 \pkg{subcaption} 宏包来处理分图。使用的效果如图 \ref{fig:multi-image-01} 、图 \ref{fig:multi-image-02} 所示。
\begin{figure}[H]
\centering
\subcaptionbox{\label{fig:subfig-a-1}}{\includegraphics[width=0.49\linewidth]{example-image-a.pdf}}
\subcaptionbox{\label{fig:subfig-b-1}}{\includegraphics[width=0.49\linewidth]{example-image-b.pdf}}
\caption{多个独立标题分图示例 01}
\label{fig:multi-image-01}
\end{figure}
\begin{figure}[H]
\centering
\subcaptionbox{分图 A1\label{fig:subfig-a-2-01}}{\includegraphics[width=0.24\linewidth]{example-image-a.pdf}}
\subcaptionbox{分图 B1\label{fig:subfig-b-2-01}}{\includegraphics[width=0.24\linewidth]{example-image-b.pdf}}
\subcaptionbox{分图 A2\label{fig:subfig-a-2-02}}{\includegraphics[width=0.24\linewidth]{example-image-a.pdf}}
\subcaptionbox{分图 B2\label{fig:subfig-b-2-02}}{\includegraphics[width=0.24\linewidth]{example-image-b.pdf}}
\caption{多个独立标题分图示例 02}
\label{fig:multi-image-02}
\end{figure}
多个分图可以以多行的形式展示,使用的效果如图 \ref{fig:multi-image-03} 所示。
\begin{figure}[H]
\centering
\subcaptionbox{分图 A1\label{fig:subfig-a1-3}}{\includegraphics[width=0.37\linewidth]{example-image-a.pdf}}
\subcaptionbox{分图 A2\label{fig:subfig-a2-3}}{\includegraphics[width=0.37\linewidth]{example-image-a.pdf}}
\\
\subcaptionbox{分图 B1\label{fig:subfig-b1-3}}{\includegraphics[width=0.37\linewidth]{example-image-b.pdf}}
\subcaptionbox{分图 B2\label{fig:subfig-b2-3}}{\includegraphics[width=0.37\linewidth]{example-image-b.pdf}}
\caption{多个独立标题分图示例 03}
\label{fig:multi-image-03}
\end{figure}
两个图左右并排放置, 共用一个标题,使用的效果如图 \ref{fig:multi-image-04} 所示。
\begin{figure}[H]
\centering
\includegraphics[width=0.37\linewidth]{example-image-a.pdf}
\includegraphics[width=0.37\linewidth]{example-image-b.pdf}
\caption{多个共用标题分图示例}
\label{fig:multi-image-04}
\end{figure}
minipage 也可以实现排版并排插图, minipage 可以划分出虚拟的区块,每个图片在各自的区块中排版,使用的效果如图 \ref{fig:minipage-1} 和 \ref{fig:minipage-2} 所示。
\begin{figure}[H]
\centering
\begin{minipage}[H]{0.37\linewidth} % 第一个minipage
\centering
\includegraphics[width=0.49\linewidth]{example-image-a.pdf}
\includegraphics[width=0.49\linewidth]{example-image-b.pdf}
\\
\includegraphics[width=0.49\linewidth]{example-image-a.pdf}
\includegraphics[width=0.49\linewidth]{example-image-b.pdf}
\caption{图 A1、图 B1、图 A2、图 B2}
\label{fig:minipage-1}
\end{minipage}
\begin{minipage}[H]{0.37\linewidth} % 第二个minipage
\centering
\includegraphics[width=\linewidth]{example-image-c.pdf}
\caption{图 C}
\label{fig:minipage-2}
\end{minipage}
\end{figure}
\section{表格}
\subsection{普通表格}
在 \LaTeX{} 中,表格的编辑相对较为复杂,推荐使用 Table Generator\footnote{\url{https://www.tablesgenerator.com/}} 生成表格。
\begin{table}[H] % 表格位置固定
\centering % 表格整体居中
\caption{表格示例} % 表格表题
\label{tab:example} % 表格标签
\renewcommand\arraystretch{2.5} % 定义表格行距
\setlength{\tabcolsep}{30pt} % 定义列间宽度
\begin{tabular}{|c|c|c|} % 表格列样式定义
\hline % 行线
2 & 9 & 4 \\ % 表内容和换行
\hline % 行线
7 & 5 & 3 \\ % 表内容和换行
\hline % 行线
6 & 1 & 8 \\ % 表内容和换行
\hline % 行线
\end{tabular}
\end{table}
为了使期刊论文的表格结构简洁和满足国际通用规则,通常需要使用三线表。三线表是传统网格线表经过简化改造而来的,取消了斜线、竖线和行线(横向分割线),表 \ref{tab:three-line} 是一个三线表的案例。
\begin{table}[H] % 表格位置固定
\centering % 表格整体居中
\caption{三线表示例} % 表格表题
\label{tab:three-line} % 表格标签
\renewcommand\arraystretch{1.2} % 定义表格行距
\setlength{\tabcolsep}{10pt} % 定义列间宽度
\begin{tabular}{lll} % 表格列样式定义
\toprule[1.5pt] % 顶线
\textbf{表头1} & \textbf{表头2} & \textbf{表头3} \\ % 表头
\midrule[0.8pt] % 栏目线
test & test & test \\ % 表体
test & test & test \\ % 表体
test & test & test \\ % 表体
\bottomrule[1.5pt] % 底线
\end{tabular}
\end{table}
表格如果有附注,尤其是需要在表格中进行标注时,可以使用 \pkg{threeparttable} 宏包。使用的效果如表 \ref{tab:three-line-with-note} 所示。
\begin{table}[H]
\centering
\caption{带附注的三线表示例}
\label{tab:three-line-with-note}
\renewcommand\arraystretch{1.3} % 定义表格行距
\setlength{\tabcolsep}{20pt} % 定义列间宽度
\begin{threeparttable}[c]
\begin{tabular}{ll}
\toprule[1.5pt]
\textbf{文件名} & \textbf{说明}\\
\midrule[0.8pt]
config.cls & 模板文件\\
guide.tex\tnote{a} & 使用指南文本文件\\
main.tex & 空白文本文件\\
references.bib & 参考文献表样式文件\\
\bottomrule[1.5pt]
\end{tabular}
\begin{tablenotes}
\item [a] 可以通过 \hologo{XeLaTeX} 编译生成模板的使用说明文档。
\end{tablenotes}
\end{threeparttable}
\end{table}
\subsection{复杂表格}
\LaTeX{} 支持绘制复杂的表格,如表 \ref{tab:complesTable1}、表 \ref{tab:complesTable2} 所示。
\begin{table}[H]
\centering
\caption{数值误差与收敛速率示例}
\renewcommand\arraystretch{1} % 定义表格行距
\setlength{\tabcolsep}{8pt} % 定义列间宽度
\label{tab:complesTable1}
\begin{tabular}{|c|c|cc|cc|cc|}
\Xhline{2\arrayrulewidth}
degree & step-size~$h$ & $L^2$-errors & order & $H^1$-errors & order & $L^\infty$-errors & order \\
\hline
& 1/128 & 9.18E-06 &2.02 & 7.70E-03 &1.01 & 6.46E-07 &2.02 \\
1 & 1/256 & 2.29E-06 &2.01 & 1.92E-03 &1.00 & 1.61E-07 &2.01 \\
& 1/512 & 5.70E-07 &2.00 & 9.56E-04 &1.00 & 4.01E-08 &2.00 \\
\hline % \cline{1-8}
& 1/128 & 1.39E-08 &3.01 & 1.15E-05 &2.01 & 3.48E-12 &4.02 \\
2 & 1/256 & 1.73E-09 &3.01 & 2.88E-06 &2.01 & 3.27E-13 &3.94 \\
& 1/512 & 2.17E-10 &3.00 & 7.24E-06 &2.00 & 6.66E-13 &1.55 \\
\hline % \cline{1-8}
& 1/32 & 2.28E-09 &4.05 & 6.92E-07 &3.04 & 1.45E-15 &8.21 \\
3 & 1/64 & 1.42E-10 &4.03 & 8.65E-08 &3.02 & 2.06E-14 &3.85 \\
& 1/128 & 8.91E-12 &4.01 & 1.08E-08 &3.01 & 3.86E-14 &0.91 \\
\Xhline{2\arrayrulewidth}
\end{tabular}
\end{table}
\begin{table}[H]
\centering
\caption{Compare with other approachs}
\label{tab:complesTable2}
\renewcommand\arraystretch{1.2} % 定义表格行距
\setlength{\tabcolsep}{10pt} % 定义列间宽度
\begin{tabular}{|c|c|c|c|c|c|c|}
\hline
\multirow{2}*{Model} & \multicolumn{3}{c|}{trigger identification} & \multicolumn{3}{c|}{Event Extraction} \\
\cline{2-7}
& P(\%) & R(\%) & F1(\%) & P(\%) & R(\%) & F1(\%) \\
\hline
Baseline1 & 76.84 & 76.84 & 76.84 & 76.84 & 76.84 & 76.84 \\
\cdashline{2-7}[1pt/2pt]
Baseline2 & 76.84 & 76.84 & 76.84 & 76.84 & 76.84 & 76.84 \\
Baseline3 & 76.84 & 76.84 & 76.84 & 76.84 & 76.84 & 76.84 \\
\cdashline{2-7}[1pt/2pt]
{\bf Our approach} & {\bf 76.84} & {\bf 76.84} & {\bf 76.84} & {\bf 76.84} & {\bf 76.84} & {\bf 76.84} \\
\hline
\end{tabular}
\end{table}
\subsection{长表格}
如某个表需要转页接排,可以使用 longtable 宏包,需要在随后的各页上重复表的编号。
编号后跟表题(可省略)和“(续)”,置于表上方。续表均应重复表头。如表 \ref{tab:longTable} 所示。
当一个张表内容过多时,建议将该表置于附录中,如附录 \ref{tab:appendix-table} 所示。
\begin{longtable}{ccccccc}
\caption{跨页长表格} \\ % 换页前标题
\toprule[1.5pt]
\textbf{表头 1} & \textbf{表头 2} & \textbf{表头 3} & \textbf{表头 4} & \textbf{表头 5} & \textbf{表头 6} & \textbf{表头 7} \\ % 换页前表头
\midrule[0.8pt]
\endfirsthead
\caption[]{跨页长表格(续)} \\ % 换页后标题
\toprule[1.5pt]
\textbf{表头 1} & \textbf{表头 2} & \textbf{表头 3} & \textbf{表头 4} & \textbf{表头 5} & \textbf{表头 6} & \textbf{表头 7} \\ % 换页后表头
\midrule[0.8pt]
\endhead
\bottomrule[1.5pt]
% \multicolumn{7}{r}{\textit{\zihao{5} \songti 接下页}} \\
\endfoot
\bottomrule[1.5pt]
\endlastfoot
\label{tab:longTable}
Row 1 & test & test & test & test & test & test \\
Row 2 & test & test & test & test & test & test \\
Row 3 & test & test & test & test & test & test \\
Row 4 & test & test & test & test & test & test \\
Row 5 & test & test & test & test & test & test \\
Row 6 & test & test & test & test & test & test \\
Row 7 & test & test & test & test & test & test \\
Row 8 & test & test & test & test & test & test \\
Row 9 & test & test & test & test & test & test \\
Row 10 & test & test & test & test & test & test \\
Row 11 & test & test & test & test & test & test \\
Row 12 & test & test & test & test & test & test \\
\end{longtable}
\chapter{引用文献相关}
模板使用 \hologo{BibTeX} 处理引用参考文献。本章主要介绍 \hologo{BibTeX} 配合 \pkg{natbib} 宏包的主要使用方法\cite{zhangkun1994,zhukezhen1973,dupont1974bone,zhengkaiqing1987,jiangxizhou1980,jianduju1994,merkt1995rotational,mellinger1996laser,bixon1996dynamics,mahui1995,carlson1981two,taylor1983scanning,taylor1981study,shimizu1983laser,atkinson1982experimental,kusch1975perturbations,guangxi1993,huosini1989guwu,wangfuzhi1865songlun,zhaoyaodong1998xinshidai,biaozhunhua2002tushu,chubanzhuanye2004,who1970factors,peebles2001probability,baishunong1998zhiwu,weinstein1974pathogenic,hanjiren1985lun,dizhi1936dizhi,tushuguan1957tushuguanxue,aaas1883science,fugang2000fengsha,xiaoyu2001chubanye,oclc2000about,scitor2000project}。
\section{顺序编码制}
在顺序编码制下,默认的 \cs{cite\{ \}} 命令同 \cs{citep\{ \}} 一样,序号置于方括号中,引文页码会放在括号外。同一处引用的连续序号会自动用短横线连接。
\begin{table}[H]
\centering
\caption{顺序编码制中的对应关系}
\begin{tabular}{l@{\quad$\Rightarrow$\quad}l}
\verb|\cite{zhangkun1994}| & \cite{zhangkun1994} \\
\verb|\citet{zhangkun1994}| & \citet{zhangkun1994} \\
\verb|\citep{zhangkun1994}| & \citep{zhangkun1994} \\
\verb|\cite[42]{zhangkun1994}| & \cite[42]{zhangkun1994} \\
\verb|\cite{zhangkun1994,zhukezhen1973}| & \cite{zhangkun1994,zhukezhen1973} \\
\end{tabular}
\end{table}
也可以通过 \cs{setcitestyle\{numbers\}} 设置引用样式为取消上标,将数字序号作为文字的一部分。建议全文统一使用相同的格式。
\setcitestyle{numbers} % 修改引用样式为取消上标格式
\begin{table}[H]
\centering
\caption{取消上标格式的顺序编码制中的对应关系}
\begin{tabular}{l@{\quad$\Rightarrow$\quad}l}
\verb|\cite{zhangkun1994}| & \cite{zhangkun1994} \\
\verb|\citet{zhangkun1994}| & \citet{zhangkun1994} \\
\verb|\citep{zhangkun1994}| & \citep{zhangkun1994} \\
\verb|\cite[42]{zhangkun1994}| & \cite[42]{zhangkun1994} \\
\verb|\cite{zhangkun1994,zhukezhen1973}| & \cite{zhangkun1994,zhukezhen1973} \\
\end{tabular}
\end{table}
\section{著者-出版年制}
可以通过 \cs{setcitestyle\{authoryear\}} 设置属性引用样式为著者-出版年制,其中 \cs{cite}
跟 \cs{citet} 一样。
\setcitestyle{authoryear} % 修改引用样式为著者-出版年制
\begin{table}[H]
\centering
\caption{著者-出版年制中的对应关系}
\begin{tabular}{l@{\quad$\Rightarrow$\quad}l}
\verb|\cite{zhangkun1994}| & \cite{zhangkun1994} \\
\verb|\citet{zhangkun1994}| & \citet{zhangkun1994} \\
\verb|\citep{zhangkun1994}| & \citep{zhangkun1994} \\
\verb|\cite[42]{zhangkun1994}| & \cite[42]{zhangkun1994} \\
\verb|\cite{zhangkun1994,mahui1995}| & \cite{zhangkun1994,mahui1995} \\
\end{tabular}
\end{table}
\setcitestyle{super} % 修改引用样式为默认
\chapter{算法及代码相关}
\section{算法}
算法(伪代码)环境使用 \pkg{algorithms} 宏包。算法 \ref{alg1} 为演示的案例。
\begin{algorithm}
\caption{STVMD based on STFT}
\label{alg1}
\begin{algorithmic}[1]
\STATE Initialization:$\left\{ {s_{k,t}^1} \right\},\left\{ {\omega _{k,t}^1} \right\},\lambda _t^1,n \leftarrow 0$
\STATE ${s_{r,t}}\left( \omega \right) = \int_0^{ + \infty } {{s_r}\left( \tau \right){w_h}\left( {t - \tau } \right)} \exp \left( {j\omega \tau } \right)d\tau $ (via STFT)
\REPEAT
\STATE $n \leftarrow n + 1$
\STATE Update $ s_{k,t}^{n + 1} $ based on Equation \eqref{eq:example1}
\STATE Update $\omega _{k,t}^{n + 1}$ based on Equation \eqref{eq:example1}
\STATE Update $\lambda _t^{n + 1} $ based on Equation \eqref{eq:example1}
\UNTIL $\sum\limits_{k=1}^P {{{\left\| {s_{k,t}^{n + 1}\left( \omega \right) - s_{k,t}^n\left( \omega \right)} \right\|_2^2} \mathord{\left/
{\vphantom {{\left\| {s_{k,t}^{n + 1}\left( \omega \right) - s_{k,t}^n\left( \omega \right)} \right\|_2^2} {\left\| {s_{k,t}^n\left( \omega \right)} \right\|_2^2}}} \right.
\kern-\nulldelimiterspace} {\left\| {s_{k,t}^n\left( \omega \right)} \right\|_2^2}}} < \varepsilon $
\STATE Update ${s_k}\left( t \right)$ based on Equation \eqref{eq:example1} (via ISTFT)
\ENSURE decomposed modes $ \left\{ {{s_k}\left( t \right)} \right\}$, $\left\{ {{\omega _k}\left( t \right)} \right\}$
\end{algorithmic}
\end{algorithm}
\section{代码}
代码环境使用 \pkg{lstlisting} 宏包。宏包可以自定义代码中关键字的高亮、代码块的边框、行号的样式等。
代码 \ref{code:Python} 是一段 Pyhton 代码示例,代码 \ref{code:Java} 是一段 Java 代码示例。
\begin{lstlisting}[label=code:Python, language=Python, caption=Python代码测试]
def partition(arr,low,high):
i = (low-1) # 最小元素索引
pivot = arr[high]
for j in range(low , high):
# 当前元素小于或等于 pivot
if arr[j] <= pivot:
i = i+1
arr[i],arr[j] = arr[j],arr[i]
arr[i+1],arr[high] = arr[high],arr[i+1]
return ( i+1 )
# 快速排序函数
def quickSort(arr,low,high):
if low < high:
pi = partition(arr,low,high)
quickSort(arr, low, pi-1)
quickSort(arr, pi+1, high)
arr = [10, 7, 8, 9, 1, 5]
n = len(arr)
quickSort(arr,0,n-1)
print ("排序后的数组:")
for i in range(n):
print ("%d" %arr[i]),
\end{lstlisting}
\begin{lstlisting}[label=code:Java, language=Java, caption=Java代码测试]
/**
* 归并排序
*
* @param array
* @return
*/
public static int[] MergeSort(int[] array) {
if (array.length < 2) return array;
int mid = array.length / 2;
int[] left = Arrays.copyOfRange(array, 0, mid);
int[] right = Arrays.copyOfRange(array, mid, array.length);
return merge(MergeSort(left), MergeSort(right));
}
/**
* 归并排序——将两段排序好的数组结合成一个排序数组
*
* @param left
* @param right
* @return
*/
public static int[] merge(int[] left, int[] right) {
int[] result = new int[left.length + right.length];
for (int index = 0, i = 0, j = 0; index < result.length; index++) {
if (i >= left.length)
result[index] = right[j++];
else if (j >= right.length)
result[index] = left[i++];
else if (left[i] > right[j])
result[index] = right[j++];
else
result[index] = left[i++];
}
return result;
}
\end{lstlisting}
\chapter{数学相关}
\section{数学符号}
中文论文的数学符号默认遵循 GB/T 3102.11—1993《物理科学和技术中使用的数学符号》\footnote{原 GB 3102.11—1993,自 2017 年 3 月 23 日起,该标准转为推荐性标准。}。该标准参照采纳 ISO 31-11:1992 \footnote{目前已更新为 ISO 80000-2:2019。}。
英文论文的数学符号使用 \TeX{} 默认的样式。
关于量和单位推荐使用\href{http://mirrors.ctan.org/macros/latex/contrib/siunitx/siunitx.pdf}{\pkg{siunitx}}宏包,可以方便地处理希腊字母以及数字与单位之间的空白,比如:
\SI{6.4e6}{m},
\SI{9}{\micro\meter},
\SI{30}{kg.m.s^{-1}},
\SI{20}{\degreeCelsius}。
表 \ref{tab:number} 展示了一些数字和单位的正确写法以及常见的错误写法。
\begin{table}[H] % 禁止浮动,确保它在文字下方
\centering
\caption{数字与单位示范}
\label{tab:number}
\renewcommand\arraystretch{1.5} % 定义表格行距
\setlength{\tabcolsep}{20pt} % 定义列间宽度
\begin{tabular}{@{}cc@{}}
\toprule[1.5pt]
正确示例 & 错误示例 \\
\midrule[0.8pt]
\num{12345,67890} & 12345.67890 \\
\num{.3e45} & 0.3 $\times$ 10\textsuperscript{45} \\
\si{\kilo\gram\metre\per\square\second} & kg m s\textsuperscript{-2} \\
\si{\square\volt\cubic\lumen\per\farad} & $V^{2}lm^{3}F^{-1}$ \\
\SI[mode=text]{1.23}{J.mol^{-1}.K^{-1}} & 1.23J mol\textsuperscript{-1}K\textsuperscript{-1} \\
\SI[per-mode=symbol]{1.99}[\$]{\per\kilogram} & \$ 1.99/kg \\
\SI[per-mode=fraction]{1,345}{\coulomb\per\mole} & 1.345$\frac{C}{mol}$ \\
\bottomrule[1.5pt]
\end{tabular}
\end{table}
\section{数学公式}
数学公式可以使用 \env{equation} 和 \env{equation*} 环境。注意数学公式的引用应前后带括号,建议使用 \cs{eqref} 命令,如公式 \eqref{eq:example1}。
\begin{equation}
\oint_{\partial \Sigma} \mathbf{E} \cdot d\mathbf{l} = -\frac{d}{dt} \int_{\Sigma} \mathbf{B} \cdot d\mathbf{S}
\label{eq:example1}
\end{equation}
多行公式尽可能在“=”处对齐,推荐使用 \env{align} 环境。
\begin{align}
a & = b + c + d + e \\
b & = f + g + h + i + j + k + l + m
\end{align}
如果需要多个公式组在一起共用一个编号, 编号位于公式的居中位置,推荐使用 \env{aligned} 环境。使用效果如公式 \eqref{eq:example2} 所示。
\begin{equation}
\label{eq:example2}
\left\{
\begin{aligned}
&-\frac{\mathrm{d}^{2} u}{\mathrm{d} x^{2}}+\frac{\mathrm{d} u}{\mathrm{d} x}=\pi^{2} \sin (\pi x)+\pi \cos (\pi x),\quad x \in [0,1], \\
&u(0)=0,\quad u(1)=0.
\end{aligned}
\right.
\end{equation}
如果不需要按等号对齐, 只需罗列数个公式, 推荐使用 \env{gather} 环境。
\begin{gather}
a = b + c \\
d = e + f + g \\
h + i = j + k \\
l + m = n
\end{gather}
\section{数学定理}
定理环境的格式可以使用 \pkg{amsthm} 或者 \pkg{ntheorem} 宏包配置。一些使用的案例如下文所示。
\begin{theorem}[Lindeberg--Lévy 中心极限定理]
设随机变量 $X_1, X_2, \dots, X_n$ 独立同分布, 且具有期望 $\mu$ 和有限的方差 $\sigma^2 \ne 0$,
记 $\bar{X}_n = \frac{1}{n} \sum_{i+1}^n X_i$,则
\begin{equation}
\lim_{n \to \infty} P \left(\frac{\sqrt{n} \left( \bar{X}_n - \mu \right)}{\sigma} \le z \right) = \Phi(z),
\end{equation}
其中 $\Phi(z)$ 是标准正态分布的分布函数。
\end{theorem}
\begin{lemma}\label{lemma-convergence}
(参考文献\cite{aaas1883science})假设单步法具有 $p$ 阶精度, 増量函数 $\varphi(x_{n}, u_{n}, h)$ 关于 $u$ 满足 {\rm Lipschitz} 条件
\begin{equation}\label{eqn:3}
|\varphi(x, u, h)-\varphi(x, \bar{u}, h)| \leqslant L_{\varphi}|u-\bar{u}|
\end{equation}
\end{lemma}
\begin{corollary}\label{col-convergence}
假设单步法具有 $p$ 阶精度, 且増量函数 $\varphi(x_{n}, u_{n}, h)$ 关于 $u$ 满足 {\rm Lipschitz} 条件
\begin{equation}\label{eqn:5}
|\varphi(x, u, h)-\varphi(x, \bar{u}, h)| \leqslant L_{\varphi}|u-\bar{u}|
\end{equation}
\end{corollary}
\begin{proof}\label{proof1}
Trivial. \QED
\end{proof}
\begin{axiom}\label{axiom1}
Axiom.
\end{axiom}
\begin{property}\label{property1}
Property.
\end{property}
\begin{assumption}\label{assumption1}
Assumption.
\end{assumption}
\begin{remark}\label{remark1}
Remark.
\end{remark}
\begin{example}\label{example1}
Example.
\end{example}
%%%%%%%%%%%%%%%%%%%%%%%% 参考文献 %%%%%%%%%%%%%%%%%%%%%%%%
\begin{references}
\bibliography{references.bib} % 指定.bib文件路径
\end{references}
%%%%%%%%%%%%%%%%%%%%%%%%% 附录 %%%%%%%%%%%%%%%%%%%%%%%%%%
\StartAppendix % 启用附录
\chapter{计算机科学常见术语}
\label{tab:appendix-table}
\begin{center}
\begin{longtable}{|c|c|}
\hline
\textbf{英文} & \textbf{中文} \\
\hline
\endfirsthead
\hline
\textbf{英文} & \textbf{中文} \\
\hline
\endhead
\hline
\endfoot
\endlastfoot
Abstract & 摘要;抽象的 \\
Abstraction & 抽象 \\
Access & 访问 \\
Accessibility & 无障碍;辅助功能 (win/mac) \\
Activate, Activation & 激活 \\
Active & 使用中的;现用的;有效的;激活的 \\
Adapter, Adaptor & 适配卡,适配器 \\
Add & 添加 \\
Address & 位址,地址 \\
Advanced & 高级的 \\
Aggregation & 聚合 \\
AI (Artificial intelligence) & 人工智能 \\
Algorithm & 算法 \\
Allocate & 分配 \\
Allocator & 分配器 \\
Annotation & 注释 (win);注解 (mac) \\
App bundle & 应用程序包 (win);App 捆绑包 (mac) \\
Application & 应用;应用程序 \\
Apply & 应用 \\
Architecture & 架构;结构 \\
Argument & 参数(也称为实际参数,实参) \\
Arity & 参数数量 \\
Artifact & 项目 (win);成品 (mac) \\
Array & 数组 \\
Assembly language & 汇编语言 \\
Assert, Assertion & 断言 (win);声明 (win/mac);论断 (mac) \\
Assign, Assignment & 分配;(编程)赋值 \\
Assignment operator & 赋值运算符 \\
Asynchronize & 异步 \\
Asynchronous & 异步的 \\
Atomic & 原子的 \\
Attribute & 属性 \\
Authenticate, Authentication & 验证,认证 \\
Authorize, Authorization & 授权 \\
\hline
\end{longtable}
\end{center}
\chapter{符号与缩略语}
\begin{denotation}
\item[PI] 聚酰亚胺
\item[MPI] 聚酰亚胺模型化合物,N-苯基邻苯酰亚胺
\item[PBI] 聚苯并咪唑
\item[MPBI] 聚苯并咪唑模型化合物,N-苯基苯并咪唑
\item[PY] 聚吡咙
\item[PMDA-BDA] 均苯四酸二酐与联苯四胺合成的聚吡咙薄膜
\item[MPY] 聚吡咙模型化合物
\item[As-PPT] 聚苯基不对称三嗪
\item[MAsPPT] 聚苯基不对称三嗪单模型化合物,3,5,6-三苯基-1,2,4-三嗪
\item[DMAsPPT] 聚苯基不对称三嗪双模型化合物(水解实验模型化合物)
\item[S-PPT] 聚苯基对称三嗪
\item[MSPPT] 聚苯基对称三嗪模型化合物,2,4,6-三苯基-1,3,5-三嗪
\item[PPQ] 聚苯基喹噁啉
\item[MPPQ] 聚苯基喹噁啉模型化合物,3,4-二苯基苯并二嗪
\item[HMPI] 聚酰亚胺模型化合物的质子化产物
\item[HMPY] 聚吡咙模型化合物的质子化产物
\item[HMPBI] 聚苯并咪唑模型化合物的质子化产物
\item[HMAsPPT] 聚苯基不对称三嗪模型化合物的质子化产物
\item[HMSPPT] 聚苯基对称三嗪模型化合物的质子化产物
\item[HMPPQ] 聚苯基喹噁啉模型化合物的质子化产物
\item[PDT] 热分解温度
\item[HPLC] 高效液相色谱(High Performance Liquid Chromatography)
\item[HPCE] 高效毛细管电泳色谱(High Performance Capillary lectrophoresis)
\item[LC-MS] 液相色谱-质谱联用(Liquid chromatography-Mass Spectrum)
\item[TIC] 总离子浓度(Total Ion Content)
\item[\textit{ab initio}] 基于第一原理的量子化学计算方法,常称从头算法
\item[DFT] 密度泛函理论(Density Functional Theory)
\item[$E_a$] 化学反应的活化能(Activation Energy)
\item[ZPE] 零点振动能(Zero Vibration Energy)
\item[PES] 势能面(Potential Energy Surface)
\item[TS] 过渡态(Transition State)
\item[TST] 过渡态理论(Transition State Theory)
\item[$\upDelta G^\neq$] 活化自由能(Activation Free Energy)
\item[$\kappa$] 传输系数(Transmission Coefficient)
\item[IRC] 内禀反应坐标(Intrinsic Reaction Coordinates)
\item[$\nu_i$] 虚频(Imaginary Frequency)
\item[ONIOM] 分层算法(Our own N-layered Integrated molecular Orbital and molecular Mechanics)
\end{denotation}
\chapter{数学符号测试}
\[ x = \frac{-b \pm \sqrt{b^2 - 4ac}}{2a} \]
\[ \binom{n}{k} = \frac{n!}{k!(n-k)!} \]
\[ [a,b) = \{ x\in\mathbb{R} \mid a \le x < b \} \]
\[ m = \frac{\Delta y}{\Delta x} = \frac{y_2 - y_1}{x_2 - x_1} \]
\[ \int_a^b f(x)\ dx = \lim_{n\to\infty} \left( \sum_{i=1}^n f(x_i^*) \Delta x_i \right) \]
\[ \frac{d}{dx} \left[ \int_a^x f'(t)\ dt \right] = f(x) \]
\[ \sin^2\alpha + \cos^2\alpha = 1 \]
\begin{center}
\begin{tabular}{ll}
$\leq$ & $\backslash$leq \\
$\geq$ & $\backslash$geq \\
$\neq$ & $\backslash$neq \\
$\nleq$ & $\backslash$nleq \\
$\ngeq$ & $\backslash$ngeq \\
$\cong$ & $\backslash$cong \\
$\equiv$ & $\backslash$equiv \\
$\sim$ & $\backslash$sim \\
$\approx$ & $\backslash$approx \\
$\doteqdot$ & $\backslash$doteqdot \\
$\times$ & $\backslash$times \\
$\cdot $ & $\backslash$cdot \\
$\ast $ & $\backslash$ast \\
$\div$ & $\backslash$div \\
$\pm$ & $\backslash$pm \\
$\mp$ & $\backslash$mp \\
$\bigcirc$ & $\backslash$bigcirc \\
$\oplus$ & $\backslash$oplus \\
$\otimes$ & $\backslash$otimes \\
\end{tabular}
\hspace*{1ex}
\begin{tabular}{ll}
$\propto $ & $\backslash$propto \\
$\cdots $ & $\backslash$cdots \\
$\dots $ & $\backslash$dots \\
$\because$ & $\backslash$because \\
$\therefore$ & $\backslash$therefore \\
$\forall$ & $\backslash$forall \\
$\exists$ & $\backslash$exists \\
$\in$ & $\backslash$in \\
$\subset $ & $\backslash$subset \\
$\subseteq $ & $\backslash$subseteq \\
$\varnothing $ & $\backslash$varnothing \\
$\cap $ & $\backslash$cap \\
$\cup $ & $\backslash$cup \\
$\setminus $ & $\backslash$setminus \\
$\wedge $ & $\backslash$wedge \\
$\vee $ & $\backslash$vee \\
$\Rightarrow$ & $\backslash$Rightarrow \\
$\rightarrow$ & $\backslash$rightarrow \\
$\mapsto$ & $\backslash$mapsto \\
\end{tabular}
\hspace*{1ex}
\begin{tabular}{ll}
\$ & $\backslash$\$ \\
\& & $\backslash$\& \\
\% & $\backslash$\% \\
$\backslash$ & $\backslash$backslash \\
$\sharp$ & $\backslash$sharp \\
$\partial$ & $\backslash$partial \\
$90^\circ$ & 90$^\wedge\backslash$circ \\
$\parallel$ & $\backslash$parallel \\
$\bot$ & $\backslash$bot \\
$\triangle$ & $\backslash$triangle \\
$\nabla$ & $\backslash$nabla \\
$\square$ & $\backslash$square \\
$\angle$ & $\backslash$angle \\
$\Pi$ & $\backslash$Pi \\
$\Theta$ & $\backslash$Theta \\
$\Gamma$ & $\backslash$Gamma \\
$\Delta$ & $\backslash$Delta \\
$\Omega$ & $\backslash$Omega \\
$\Sigma$ & $\backslash$Sigma \\
\end{tabular}
\hspace*{1ex}
\begin{tabular}{ll}
$\alpha$ & $\backslash$alpha \\
$\beta$ & $\backslash$beta \\
$\epsilon$ & $\backslash$epsilon \\
$\zeta$ & $\backslash$zeta \\
$\eta$ & $\backslash$eta \\
$\kappa$ & $\backslash$kappa \\
$\lambda$ & $\backslash$lambda \\
$\mu$ & $\backslash$mu \\
$\xi$ & $\backslash$xi \\
$\rho$ & $\backslash$rho \\
$\tau$ & $\backslash$tau \\
$\phi$ & $\backslash$phi \\
$\psi$ & $\backslash$psi \\
$\pi$ & $\backslash$pi \\
$\theta$ & $\backslash$theta \\
$\gamma$ & $\backslash$gamma\\
$\delta$ & $\backslash$delta \\
$\omega$ & $\backslash$omega \\
$\sigma$ & $\backslash$sigma \\
\end{tabular}
\end{center}
%%%%%%%%%%%%%%%%%%%%%%% 正文后页眉 %%%%%%%%%%%%%%%%%%%%%%
% 页眉(关闭页眉务必将页眉类型设为empty)
\Header
{common} % 页眉类型:common、publish、empty
{1pt} % 上分隔线宽度
{1pt} % 两线距离
{0.5pt} % 下分割线宽度
{} % 页眉左自定义内容(文本或图片)
{\includegraphics[width=0.185\textwidth]{DGUT-title-CN.pdf}} % 页眉中自定义内容(文本或图片)
{} % 页眉右自定义内容(文本或图片)
%============================================%
% 页脚(关闭页脚务必将页脚类型设为empty)
\Footer
{common} % 页脚类型:common、publish、empty
{0pt} % 上分隔线宽度
{0pt} % 两线距离
{0pt} % 下分割线宽度
{} % 页脚左自定义内容(文本或图片)
{\thepage} % 页脚中自定义内容(文本或图片)
{} % 页脚右自定义内容(文本或图片)
%============================================%
% 页数样式 参数:#1起始页数
% \setRomanPageNumber{1} % 设置罗马数字页码
% \setArabicPageNumber{1} % 设置阿拉伯数字页码
%%%%%%%%%%%%%%%%%%%%%%%%% 致谢 %%%%%%%%%%%%%%%%%%%%%%%%%
\StartAcknowledgements % 启用致谢
感谢各参考模板的帮助。感谢你的使用。
\end{document}
